TS 5000 E

E guide rail TS 5000 with electric hold-open device and lever

E-guide rail TS 5000
  • Electric hold-open device in the guide rail with hold-open area of 80°-130°
  • Retention force of the electromechanical hold-open device can be variably adjusted
  • Operating voltage 24 V DC
  • Height compensation of +/- 2 mm possible
  • With screwed slide block
Contact us

E guide rail TS 5000

Application Areas

  • Single leaf doors
  • Hold-open systems with integrated hold-open device
  • Installation on hinge side
  • Right and left single-action doors

Technical data

E guide rail TS 5000
Input voltage 24 V DC
Electrical power consumption 2.4 W
Duty rating 100 %
Residual ripple 20 %
IP rating IP43
Standard conformity EN 1155
Length 498.5 mm
Width 40 mm
Height 30 mm
opening restrictor upgradable Yes
Hold-open function Electrical
Hold-open device can be overridden Yes
Hold-open range 80 ° - 130 °
Height correction possible Yes
Flexible opening restrictor Yes

Downloads

E-guide rail TS 5000

LABELLING OBLIGATION:  © GEZE GmbH

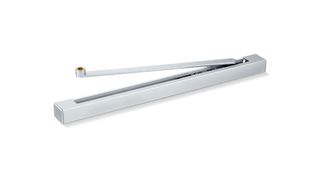

Product shot (671446)

Variants & Accessories

Sliding block for opening restriction
Accessories

Flexible opening restrictor

For E and R guide rails, 1- and 2-leaf
