Guide rail 1-leaf

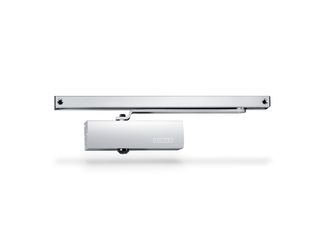

TS 1500 G Overhead door closer with guide rail with a leaf width of up to 750 mm

TS 1500 G overhead door closer with guide rail Can be used on right and left leaf doors with a leaf width up to 750 mm
  • Fixed closing force of EN1
  • Can be used for right and left hand doors without conversion
  • Hydraulic latching action which accelerates the door shortly before it is closed
  • Closing speed can be individually adjusted
  • All functions can be set from the front (except for closing force)
Contact us

Overhead door closer with guide rail with a leaf width of up to 750 mm

Application Areas

  • Right and left single-action doors
  • Single-action doors up to 750 mm leaf width

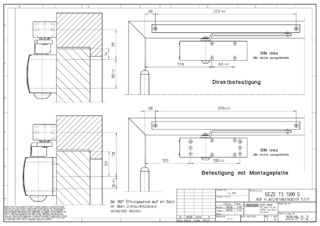

  • Door leaf installation hinge side and transom installation opposite hinge side

Technical data

TS 1500 G
Leaf width (max.) 750 mm
Type of installation Door leaf installation hinge side, Transom installation opposite hinge side
Suitability for fire protection doors No
Adjustable closing speed Yes
Latching action adjustable Yes, via valve
Position of closing force adjustment At the side
Hold-open device Optional
Integrated smoke switch No
