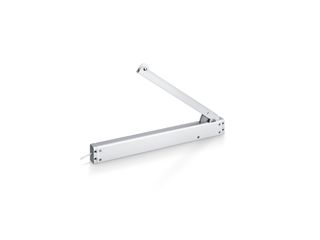

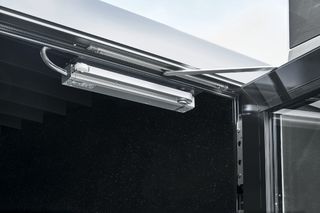

RWA K 600 T Retractable arm drive for air inlet systems for installation on doors
- 90° door opening in less than 60 seconds
- Powerful drive with high torque
- Connector cable easy to replace by means of plug
- Integrated status contact for electric strike control unit or feedback signals
- Door remains freely accessible due to the freely positioned activation of the lever by means of a pressure roller
Application Areas
- Use in the air inlet system where large opening angles are required

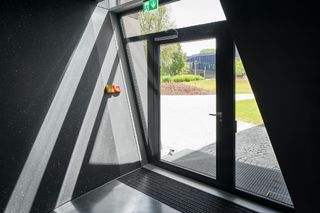

- Single and double leaf SHEV air inlet doors
- Installation on the hinge or opposite hinge side
Technical data
| RWA K 600 T | |
| Dimensions | 421 x 40 x 56 mm |
| Housing material | Aluminum |
| Compressive force | 600 N |
| Operating voltage | 24 V DC |
| Current consumption | 1.4 A |
| Residual ripple | 20 % |
| Duty rating | 30 % |
| Connector cable length | 5 m |
| Special length of connector cable | 10 m |
| Min. core cross section | 0.5 mm² |
| Number of cores | 5 cores |
| Service temperature | -5 - 75 °C |
| IP rating | IP32 |
| protection rating | III |
| Syncro function | Yes |
| Adjustable opening speed (ventilation) | Yes |
| Additional locking available | Yes |
| Type of additional locking mechanism | Locking drive |
| End position cut-off extended | Internal path sensor |
| End position cut-off retracted | Internal path sensor |
| Overload cut-off | Yes |
| Number synchronisation drive units | 2 |
