Sensor strips

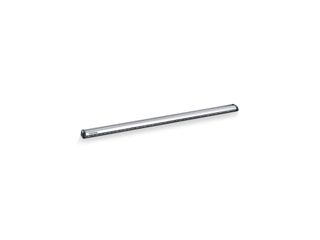

GC 338 Sensor strip with standby mode for the protection of automatic swing and revolving doors

GC GR sensor roller guide rail + GC 338 sensor Sensors and activation device, GC GR sensor roller guide rail for TSA 160 NT and Slimdrive EMD in lengths 1100 mm and 1500 mm
  • Energy and space-saving sensor strip
  • Standby mode provides up to 50 % energy savings and increases the life span of the LED diodes
  • Close-knit detection area secures leaf widths of up to max. 1500 mm
  • Integrated object and wall blanking near maximum door opening
  • Automatized teaching of the system with the push of a button
  • All settings can be conveniently made by DIP switch
Show more

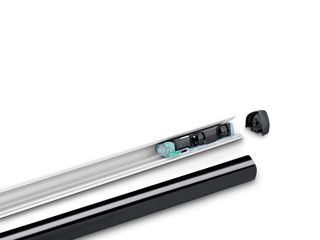

  • Click installation in the sensor cut-out profile reduces installation work
Contact us

Sensor strip with standby mode for the protection of automatic swing and revolving doors

Application Areas

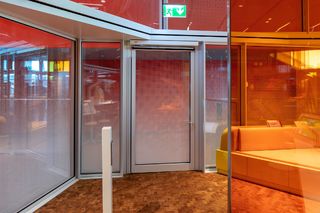

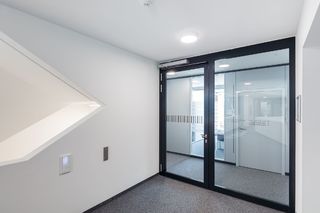

  • Protection of automatic swing and revolving doors
  • Interior and exterior doors
  • Complicated flooring, such as reflective floors, entrance mats, metal rails
  • Narrow door profiles

Technical data

GC 338
Technology Active infrared beams
Operating current 30 mA
IP rating IP54
Connection cable length 5000 mm
Installation height (min.) 1500 mm
Installation height (max.) 3500 mm
Reaction time < 52 ms and, < 200 ms in boost mode
Service temperature -30 °C - 60 °C
Humidity < 90 % relative, non-condensing
Approvals EN 16005, DIN 18650
