Programme switches

Display programme switch DPS Display programme switch for setting the mode of operation for automatic doors

Display programme switch DPS-SCT Programme switches to parameter setting, commissioning and choose the operating status of autom. doors with authorisation
  • Unwanted mode of operation changes on escape and rescue route doors can be avoided via number code
  • Display programme switches are also available with key switches
  • 7-segment display shows mode of operations, maintenance info, and error display
Contact us

Display programme switch for setting the mode of operation for automatic doors

Application Areas

  • For changing the modes of operation of GEZE automatic door systems

Technical data

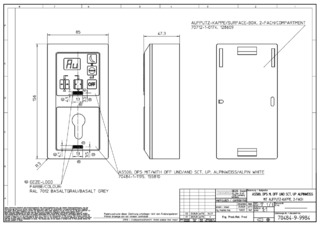

Display programme switch DPS
Dimensions 80 x 80 x 11 mm
Current consumption 60 mA
IP rating IP40
Type of installation Surface mounting, flush mounting
Connection cable length 100 m
Service temperature -15 °C - 50 °C
