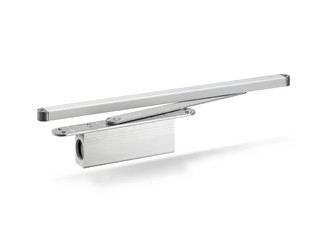

Door draw-in damper

GEZE ActiveStop, integrated Draw-in damper on both sides for single-action doors without fire protection requirements

  • Door opening angle with variable adjustment, ranging from 80°-140°.
  • For right and left hand doors without the need for conversion
  • Controlled opening and closing of doors up to max. 45 kg leaf weight
  • Gentle stopping and silent closing, and doors are kept open with ease
  • Slamming doors, jammed fingers, damage to walls and furniture are virtually impossible.
  • Safe hold of the door when open, no door stopper required
  • When installed, the back check and closing damping settings can be made via a valve
  • Integrated safety valve offers protection against overload
Contact us

Draw-in damper on both sides for single-action doors without fire protection requirements

Application Areas

  • Right and left wooden single-action doors indoors
  • Room doors with high access convenience
  • Single-action doors with leaf width of up to 1100 mm
  • Integrated installation in the door leaf
  • Barrier-free access in accordance with DIN 18040

Product specifications

GEZE ActiveStop, integrated
Productname GEZE ActiveStop, integrated
Depth 28 mm
Height 64 mm
Leaf weight (max.) 45 kg
Recommended leaf width up to 1100 mm
Leaf thickness from 38 mm
Same version for DIN left and DIN right Yes
Rebate space approx. 6 mm clearance in handle area
Leaf type rebated, closing flush doors
Draw-in damper in direction of closing movement from 25 °
Free swing area 25 ° 60 °
Draw-in damper in direction of opening movement from 60 °
Door opening angle 80 ° 140 °
Secured final position Safe holding of the door in the open position, no door stop needed
Safety valve againts overload Yes
Latch blockers Supplied by GEZE
