Perlan
Perlan 140 Teleskop Telescopic sliding fitting system for ceiling mounting of timber leaves, consisting of basic components, track and telescopic Perlan set, double-leaf, can be extended to three-leaf
- For timber, plastic, and metal leaves
- For two-leaf or three-leaf systems of up to 140 kg per leaf
- Can already be used for extremely narrow leaf widths from 475 mm upwards up to leaf widths of max. 1700 mm
- Pre-assembly of the telescope set on the door leaf allows for comfortable installation
- Needs 2x basic components, 2x track and 1x telescopic Perlan double leaf set --> Product features
Application Areas
- Space-saving door hardware for large passages
- Living, office, and conference areas as well as hotels
- All other product features correspond to the Perlan 140 sliding system
Installation situations in reference objects and videos

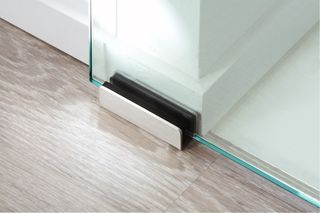

Perlan 140 Glass floor guide
Glass floor guide for sliding fitting systems © Studio BE / GEZE GmbH
Technical data
| Perlan 140 Teleskop | |
| Leaf material | Wood |
| Leaf weight (max.) | 140 kg |
| Number of leaves | 2-leaf, 3-leaf |
| Leaf width (min.) | 475 mm |
| Leaf width (max.) | 1700 mm |
| Track geometry | straight |
| Corrosion protection class | 2 |
| Type of installation | Ceiling |
| DIN direction | left / right |
Downloads
GEZE Perlan 140 telescope outside
