Perlan AUT-NT
Perlan AUT-NT for glass leaves Automation for Perlan on glass doors with up to 80 kg leaf weight
- For automation of Perlan internal sliding doors with a leaf weight of max. 80 kg
- Adjustable comfort and safety functions
- Max. speed can be set up to 0.3 m/s
- Low-energy sliding door drive in accordance with EN 16005
Application Areas
- Sliding door automation for Perlan on light to medium-weight interior doors
- Particularly suitable for private living areas
- Single and multiple-leaf glass sliding doors
- Mounting to the wall and also to the ceiling via additional ceiling brackets
- Not for escape or rescue routes
Installation situations in reference objects and videos
Perlan 140 Glass floor guide
Glass floor guide for sliding fitting systems © Studio BE / GEZE GmbH
Technical data
| Perlan AUT-NT for glass leaves | |
| Leaf material | Glass |
| Leaf weight (max.) | 80 kg |
| Number of leaves | 1-leaf, 2-leaf |
| Leaf width (min.) | 500 mm |
| Leaf width (max.) | 1640 mm |
| Leaf thickness from | 8 mm |
| Leaf thickness to | 12 mm |
| Track geometry | straight |
| Type of installation | Wall, Ceiling |
| DIN direction | left / right |
| Telescope | No |
| Automated | Yes |
| Side panel | No |
Downloads

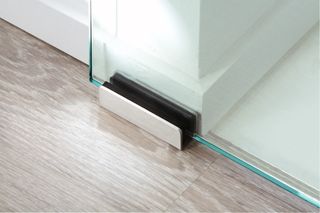

Installation situation
Perlan 140 Glass floor guide
LABELLING OBLIGATION:
© Studio BE / GEZE GmbH

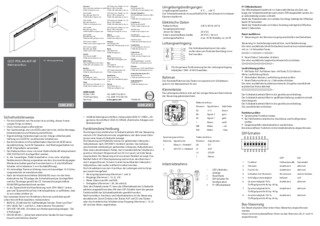

Wiring diagram
User manual
Installation instructions
Product brochure

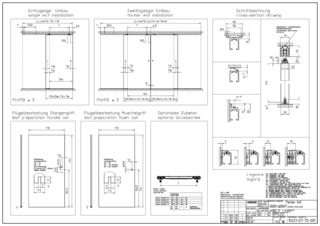

Installation drawing
Product data sheet
