Combined detector

GC 365 Combined detector for activating and protecting automatic sliding doors with four different infrared light curtain configuration settings

  • Radar movement detector with infrared light curtain and third presence detector
  • Reliable detection up to an installation height of 3500 mm.
  • Four adjustable light curtain configurations without additional light prisms
  • Fewer total sensors are required due to the large detection area on the floor
  • Look back function secures the area between the door leaves during the hold-open time
  • Installation and parameter setting information provided directly in the sensor housing
  • All settings can be conveniently made by DIP switch
Contact us

Combined detector for activating and protecting automatic sliding doors with four different infrared light curtain configuration settings

Application Areas

  • Activation and protection of automatic sliding doors
  • Interior and exterior doors

Product specifications

GC 365
Technology Electromagnetic radar waves/active infrared beams
Operating voltage 12-30 V DC / 12-24 V AC
Operating current approx. 100 mA
Output Radar GC 365 R: relay (potential-free contact), 50 V DC max. switching voltage, 300 mA max. output current, Radar GC 365 SF: transistor (opto-coupler, potential-free), 50 V DC max. switching voltage, 300 mA max. output current, Light curtain: electric relay, 50 V DC max. switching voltage, 100 mA max. output current

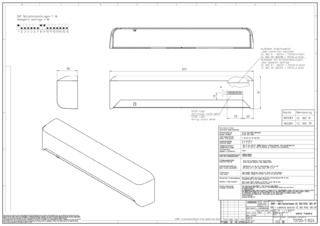

Height 61 mm
Width 267 mm
Depth 38 mm
Installation height (min.) 2000 mm
Installation height (max.) 3500 mm
Connection cable 3000 mm
Weight 270 g
IP rating IP54
Operating temperature -20 °C 55 °C
Humidity 0-80 % relative, non-condensing
Approvals DIN 18650, EN 16005
