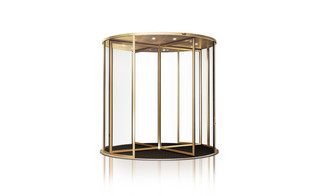

Revo.PRIME Automatic revolving door system with low canopy height and narrow profile system for three- or four-leaf doors
- Very quiet running, low-wear drive solution with a canopy height of only 75 mm
- Precise closing of the door leaves with the side walls
- Effective insulation effect against draughts, weather and noise
- Adjustable automatic speed setting, in line with the number of people passing through
- Manual operation of the door possible, e.g. to carry out cleaning work
- Can be networked, and integrated into the building automation via open standard (BACnet)
- Independent error recognition and recording
- Freely configurable inputs and outputs for different functions
- Integrated, rechargeable battery for emergency opening in case of safety-relevant faults, such as power failure

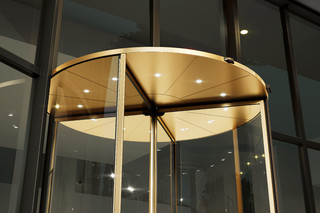

The most beautiful way to say welcome: the sophisticated Revo.PRIME revolving door makes a great impression in entrance areas with its minimal canopy height of just 75 mm, its narrow profile system of just 60 mm and a barely visible drive. Advanced drive technology also ensures the best possible access convenience and safety.
Application Areas
- Three- and four-leaf door systems
- Interior and exterior doors with high access frequency
- Representative building entrances with large incidence of light
- Façades with slim mullion-transom constructions
- Glass façades with the highest design standards
- Inner diameter from 1800 to 3800 mm possible
- Suitable profile systems are fine-framed profile systems with ISO and mono glass
Technical data
Revo.PRIME | |
Manual operation | Yes |
With speed limiter (optional) | Yes |
With positioning device (optional) | Yes |
Fully automatic operation | Yes |
Servo function | No |
Inner diameter (min.) | 1800 mm |
Inner diameter (max.) | 3800 mm |
For 3-leaf door systems | Yes |
For 4-leaf door systems | Yes |
Clear passage height | 3500 mm |
Canopy height (min.) | 75 mm |
Side elements version | 10 mm LSG, 22 mm panel lining, 34 mm smooth-surface panel, Special glass on request |
Version of roof structure | optical sheet metal covering, waterproof roof with waterspout |
Illumination | with roof variant |
Floor covering | Entrance mat, Entrance mat according to customer wishes |
Hot-air curtain system | Electric air curtain, hot water air curtain, possible, depends on the ceiling construction |
Night-time closer layout | Inside, Outside |
Night-time closer type | Manual, Automatic |
Night-time closer design | 10 mm LSG, 22 mm ISO glass, 22 mm panel lining, Special glass on request |
Lock | Manual, Rod, electromechanical |
Door handles horizontal or vertical | Yes |
Floor ring | Yes |
Underfloor operator | No |
Disabled person's button | Yes |
Standard conformity | EN 16005 |
