Sensor switch

Mini LED sensor switch Activation of all GEZE automatic doors

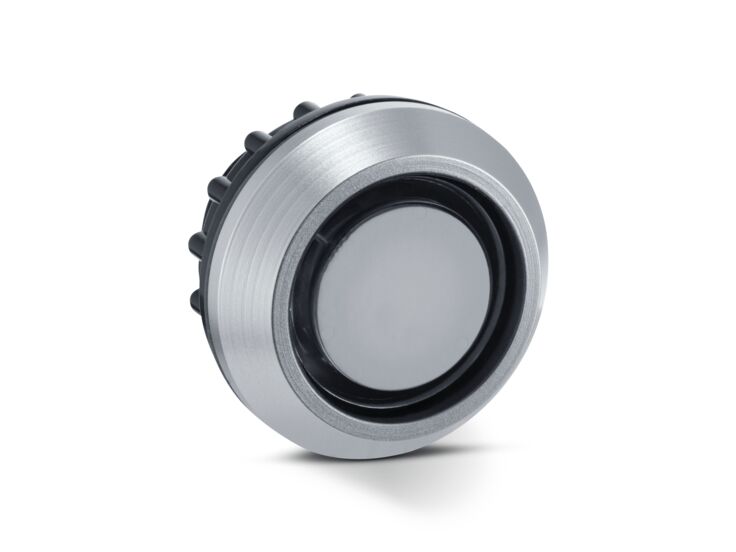

Mini-LED sensor switch Activation of all door drives for internal application and in the outer area
  • Touch-sensitive capacitive push button with green/red LED illumination
  • Long service life - more than 100 million hystereses
  • Impact and vandalism-proof by protection degree IK08
  • Requires drilling hole diameter of 22.2 mm
  • Continuously illuminated green (can be switched off), illuminated red when touched
  • IP rating IP69
Buy now

Mini LED sensor switch

Application Areas

  • For activation of all GEZE automatic doors
  • High-quality and hygienic activation with visual feedback of the activation command

Technical data

Mini LED sensor switch
Dimensions 28.5 x 28.5 x 21 mm
Current consumption 20 mA
Output PNP transistor output
IP rating IP69K
Type of installation Flush-mounted installation
Connection type Cable prepared for connection to screw terminal
Connector cable length 200 mm
Service temperature -30 - 70 °C

Downloads

Product shot

Mini-LED sensor switch Product shot (74695)
KENNZEICHNUNGSPFLICHT:  © GEZE GmbH

Product brochure

Product brochure EN (48341)
Download (.PDF | 5 MB)
Product brochure EN (49980)
Download (.PDF | 10 MB)

Product data sheet

Download (.PDF | 445 KB)
