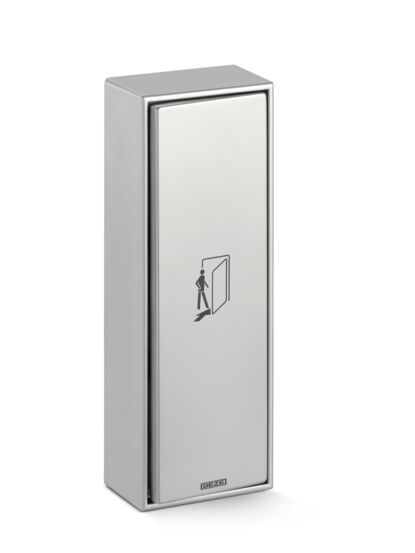

LS 990 elbow switch Elbow switch for activating automatic doors
- Flat design with a height of 223 mm
- Large push switch for activation even with elbows
- Optional expansion with transmitting module
Application Areas
- Activation of automatic swing, sliding, folding, revolving and curved sliding doors
- Inside
Installation situations in reference objects and videos

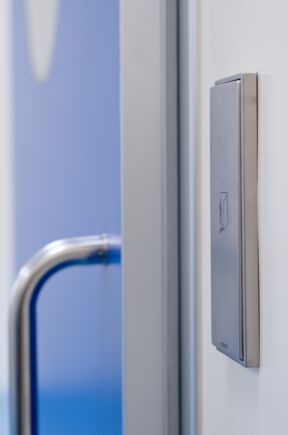

ECdrive H, LS 990, Hospital Door
© Łukasz Janicki / GEZE GmbH
Slimdrive EMD with GC 342 laser scanner and TZ 320 door control unit
The largest science centre in Germany, the experimenta in Heilbronn. Equipped with innovative GEZE technology, it offers its visitors a unique world of knowledge and experience. © Jürgen Pollak / GEZE GmbH
Activation remote control
Remote control for activation GEZE automatic doors and window drives over the GEZE wireless programme. © Studio BE / GEZE GmbH

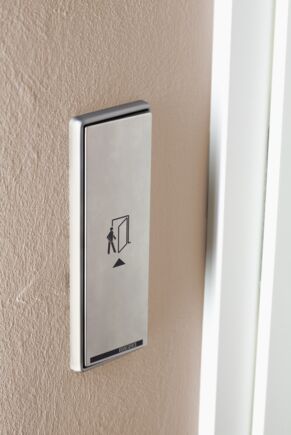

Elbow switch LS990
Activation device for autom. swing, sliding, folding and curved sliding door © GEZE GmbH
Powerturn F with LS 990
Powerturn F: Electromechanical swing door drive with LS 990 elbow switch for activating automatic doors. © Jürgen Pollak / GEZE GmbH
Technical data
| LS 990 elbow switch | |
| Dimensions | 81 x 223 mm |
| Switching voltage | 230 V |
| Switching current | 10 A |
| IP rating | IP30 |
| Type of installation | Surface-mounted, Flush-mounted installation |
