Push button

KFT elbow switch Plastic elbow switch, IP rating IP20, for activation of automatic doors

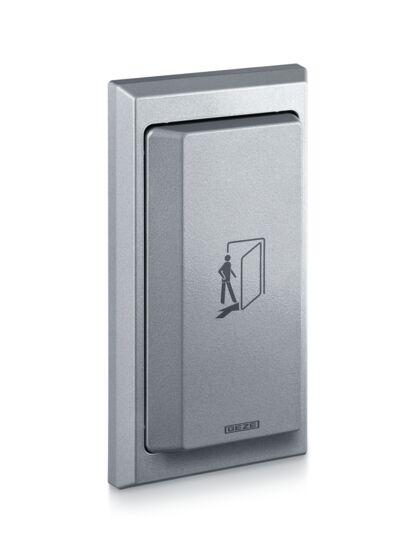

Elbow switch Niro Elbow switch Niro
  • IP rating IP20
  • Very flat design with a height of 180 mm
  • Large push switch for activation even with elbows
  • Optional expansion with transmitting module
  • Optional back plate for adhering to smooth surfaces like glass
Buy now

KFT elbow switch

Application Areas

  • Activation of automatic swing, sliding, folding, revolving and curved sliding doors
  • Inside
  • Surface-mounted installation

Installation situations in reference objects and videos

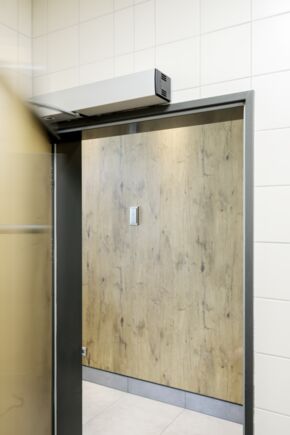

McDonald's branch Stuttgart Möhringen LS 990 elbow switch with swing door drive Powerturn F/R on the opposite wall, at McDonalds in Stuttgart-Möhringen.

McDonald's branch Stuttgart Möhringen

LS 990 elbow switch with swing door drive Powerturn F/R on the opposite wall, at McDonalds in Stuttgart-Möhringen. © Jürgen Pollak / GEZE GmbH

Remote control for activation Remote control for activation of GEZE automatic doors and window drives using the GEZE wireless programme.

Remote control for activation

Remote control for activation of GEZE automatic doors and window drives using the GEZE wireless programme. © Studio BE / GEZE GmbH

Technical data

KFT elbow switch
Dimensions 90 x 179 x 23 mm
Switching voltage 24 V DC
Switching current 1 A
IP rating IP20
Type of installation Surface-mounted
Material Plastic
Service temperature -20 - 85 °C

Downloads

Product shot

Elbow switch Product shot (71983)
KENNZEICHNUNGSPFLICHT:  © GEZE GmbH
Elbow switch Niro Product shot (72498)
KENNZEICHNUNGSPFLICHT:  © GEZE GmbH

Installation situation

McDonald's branch Stuttgart Möhringen Installation situation (82292)
KENNZEICHNUNGSPFLICHT:  © Jürgen Pollak / GEZE GmbH
Remote control for activation Installation situation (79964)
KENNZEICHNUNGSPFLICHT:  © Studio BE / GEZE GmbH

Tender texts

Declaration of conformity

Declaration of conformity DE EN (65611)
Download (.PDF | 160 KB)

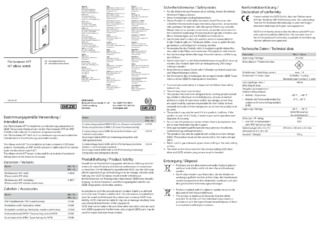

Installation instructions

Product brochure

Product brochure EN (48341)
Download (.PDF | 5 MB)
Product brochure EN (48500)
Download (.PDF | 11 MB)
Product brochure EN (49980)
Download (.PDF | 10 MB)

Product data sheet

Download (.PDF | 502 KB)

Variants & Accessories

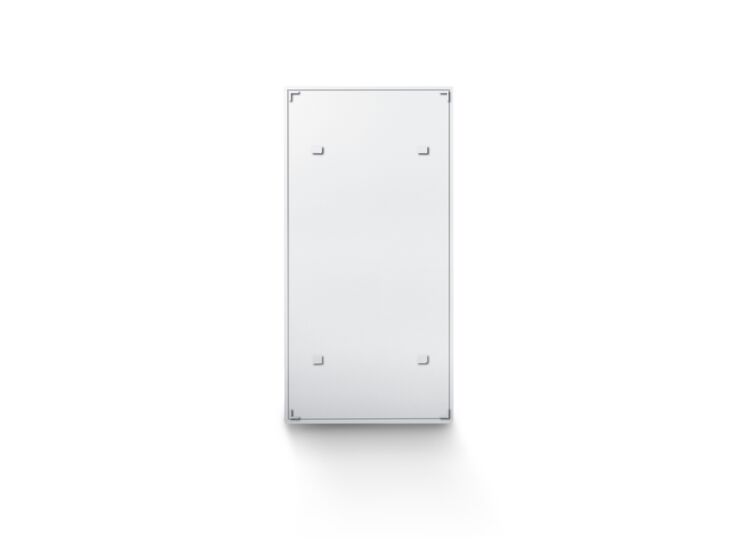

Back plate niro
Accessories

Back plate KFT

For attaching GEZE plastic elbow switches on even surfaces

Product details

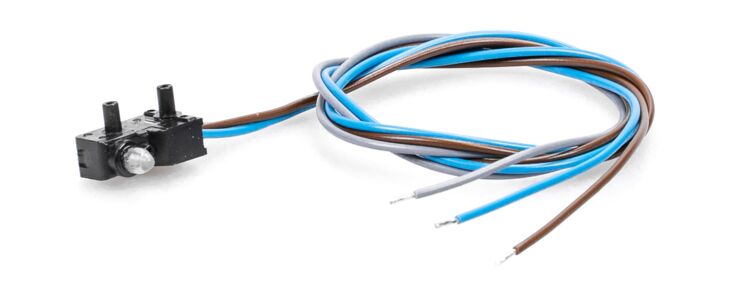

Optional IP 65 changeover contact for elbow switch
Accessories

Switch contact IP67 for KFT elbow switch

Accessories for plastic elbow switches

Product details
