TS 5000 EFS 3-6 with guide rail TS 5000 / 3000

Guide rail TS 5000 / 3000 Standard guide rail with lever

Guide rail TS 3/5000 BG
  • Quick installation due to clip-on slide block
Contact us

Guide rail TS 5000 / 3000

Application Areas

  • Single leaf doors
  • Door leaf installation hinge side
  • Transom installation hinge and opposite hinge side
  • Right and left single-action doors

Technical data

Guide rail TS 5000 / 3000
Length 448.5 mm
Width 30.5 mm
Height 20.5 mm
opening restrictor upgradable Yes
Hold-open function Optional
Hold-open device can be overridden Yes

Downloads

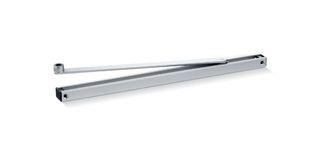

Guide rail TS 3/5000 BG Product shot (672891)
LABELLING OBLIGATION:  © GEZE GmbH

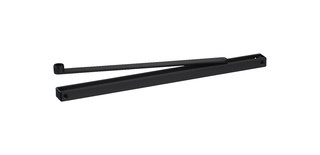

TS 3000/5000 BG guide rail Product shot (1802833)
LABELLING OBLIGATION:  © GEZE GmbH
Guide rail TS 5000 / 3000 Product data sheet EN
Download (.PDF | 83 KB)
Installation instructions (764833)
Download (.PDF | 10 MB)
Installation instructions (872762)
Download (.PDF | 5 MB)

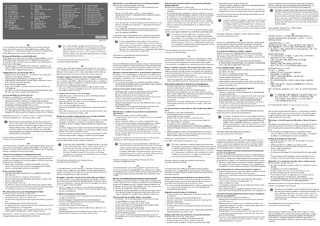

Supplementary sheet BG CS DA DE EL EN ES ET FI FR HU IT LT LV MT NL PL PT RO RU SK SL SV ZH (759073)
Download (.PDF | 560 KB)
Supplementary sheet DE EN (768969)
Download (.PDF | 764 KB)
Environmental declaration EN (760382)
Download (.PDF | 613 KB)
Environmental declaration EN (2544798)
Download (.PDF | 263 KB)

Variants & Accessories

GEZE flexible opening restriction for lightweight doors
Accessories

Flexible opening restrictor

For riveted guide rail, standard guide rail BG, standard guide rail and Boxer 20.7 mm guide rail

Product details
GEZE mechanical hold-open unit
Accessories

Mechanical hold-open unit

For standard/T-Stop/Boxer 20.7 mm guide rail

Product details
