Door control units stand-alone - TZ 300 series

TZ 300 UP Door control unit for controlling individual escape route doors

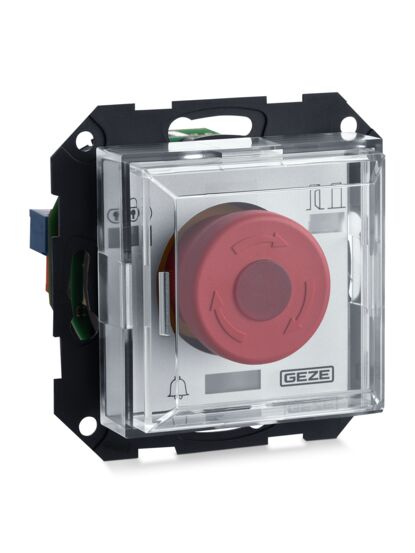

Control unit TZ 300 UP
  • Flat impact cover enables fast and safe activation of the illuminated emergency push button in panic situations
  • Coloured connectors facilitate electrical connection
  • Consistent design allows easy replacement with a connectable TZ 320
  • Integrated pulse generators can easily be extended by additional external signal transmitters
Buy now

TZ 300 UP

Application Areas

  • EltVTR-compliant protection of an emergency exit against unauthorised access
  • Can be used on single and double leaf doors
  • Integrated interface enables the emergency exit to be unlocked via a danger alarm system
  • Flush-mounted installation ensures seamless integration into the building
  • Designed for installation in 55-type flush-mounted ranges
  • Can be mounted in flush-mounted sockets 62.5 mm deep

Technical data

TZ 300 UP
Type of installation Flush-mounted installation
Service temperature -10 - 50 °C
IP rating IP30
Operating voltage 24 V DC
Current consumption 100 mA
Supply voltage 24 V DC
Contact rating 30 V / 1 A
Sabotage contact Yes
Number of inputs 1 Stk.
Number of outputs 1 Stk.
Emergency push button Yes
Visual display yes
Volume 75 db
With ribbon cable Yes
Conforms to the EltVTR (guidelines for electronic locking systems) Yes

Downloads

Product shot

Control unit TZ 300 UP Product shot (72853)
KENNZEICHNUNGSPFLICHT:  © GEZE GmbH
TZ 300 UP Steuerungseinheit Product shot (76046)
KENNZEICHNUNGSPFLICHT:  © GEZE GmbH
TZ 300 UP Steuerungseinheit Rückseite Product shot (76047)
KENNZEICHNUNGSPFLICHT:  © GEZE GmbH
TZ 320 UP Steuerungseinheit Rückseite Product shot (76051)
KENNZEICHNUNGSPFLICHT:  © GEZE GmbH

User manual

User manual EN (54912)
Download (.PDF | 2 MB)
User manual EN (55081)
Download (.PDF | 762 KB)

Flyer & folder

Flyer & folder EN (49964)
Download (.PDF | 434 KB)

Product brochure

Product brochure EN (49980)
Download (.PDF | 10 MB)

Product data sheet

Download (.PDF | 733 KB)
