Radar movement detectors

GC 302 Radar movement detector for the activation of automatic doors

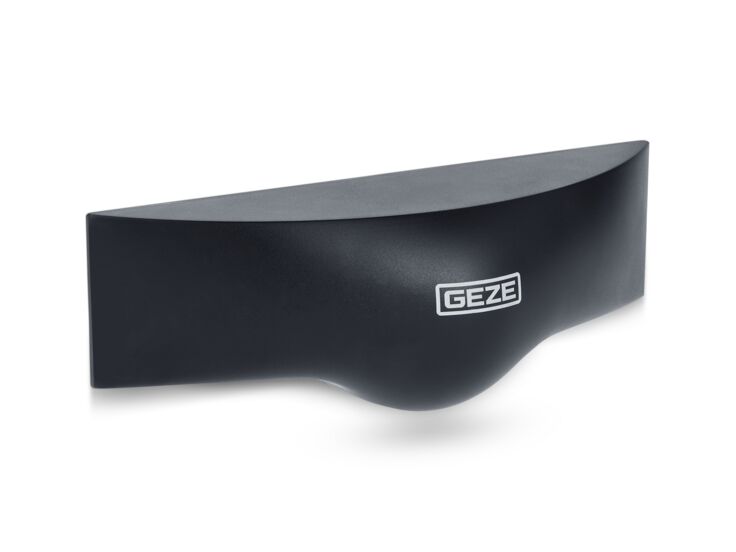

GEZE 302 Radar movement detector for the activation of automatic doors, with direction detection
  • Convenient commissioning with pre-programmed settings
  • Configuration possible via push buttons or remote control
  • Clearly defined radar field (narrow or wide field) with reliable detection
  • Integrated motion tracking also records slow movements
  • Movement direction detection and cross-traffic fade-out reduces energy consumption in the building
  • Door opening impulse only triggered if needed
Buy now

GC 302

Application Areas

  • Activation of automatic swing, sliding, folding, revolving and curved sliding doors
  • Interior and exterior doors

Installation situations in reference objects and videos

Slimdrive EMD-F/R-IS, Uni Schloss Mannheim Slimdrive EMD-F/R-IS with GC 342 laser scanner and GC 302 radar sensor on a 2-leaf door at the University Schloss Mannheim

Slimdrive EMD-F/R-IS, Uni Schloss Mannheim

Slimdrive EMD-F/R-IS with GC 342 laser scanner and GC 302 radar sensor on a 2-leaf door at the University Schloss Mannheim © Nico Walke / GEZE GmbH

Technical data

GC 302
Dimensions 176 x 62 x 52 mm
Technology Electromagnetic radar waves
Operating voltage 12-36 V DC / 12-28 V AC
Switching voltage 48 V
Switching current 1 A
Operating current 50 mA
IP rating IP54
Connection type Plug-in screw terminal
Connector cable length 5000 mm
Installation height (max.) 4000 mm
Transmission frequency 24.125 GHz
Weight 150 g
Service temperature -20 - 60 °C
Humidity 0-90 % relative, non-condensing

Downloads

Product shot

GEZE 302 Product shot (72364)
KENNZEICHNUNGSPFLICHT:  © GEZE GmbH

Installation situation

Slimdrive EMD-F/R-IS, Uni Schloss Mannheim Installation situation (84144)
KENNZEICHNUNGSPFLICHT:  © Nico Walke / GEZE GmbH

Tender texts

Declaration of conformity

Declaration of conformity FR DE EN (53034)
Download (.PDF | 65 KB)

Installation instructions

Product brochure

Product brochure EN (48341)
Download (.PDF | 5 MB)
Product brochure EN (49980)
Download (.PDF | 10 MB)

Product scale drawing

Product data sheet

Download (.PDF | 492 KB)

Variants & Accessories

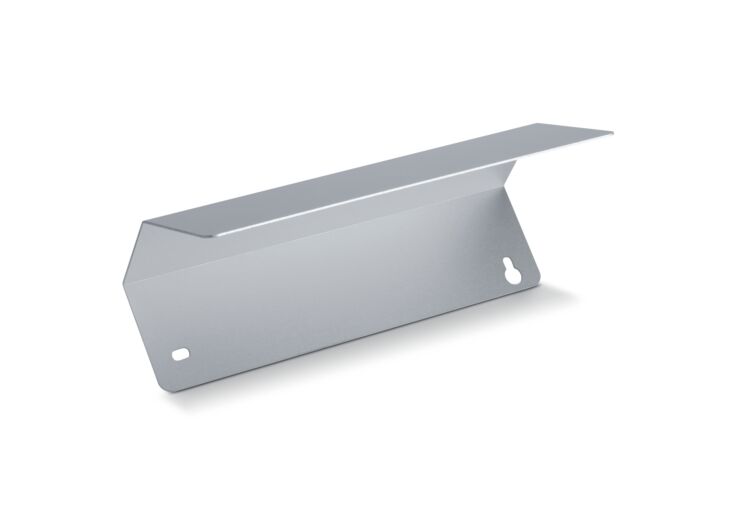

Weather hood GC 302
Accessories

Weather hood GC 302

Protects the sensor when installed outdoors

Product details

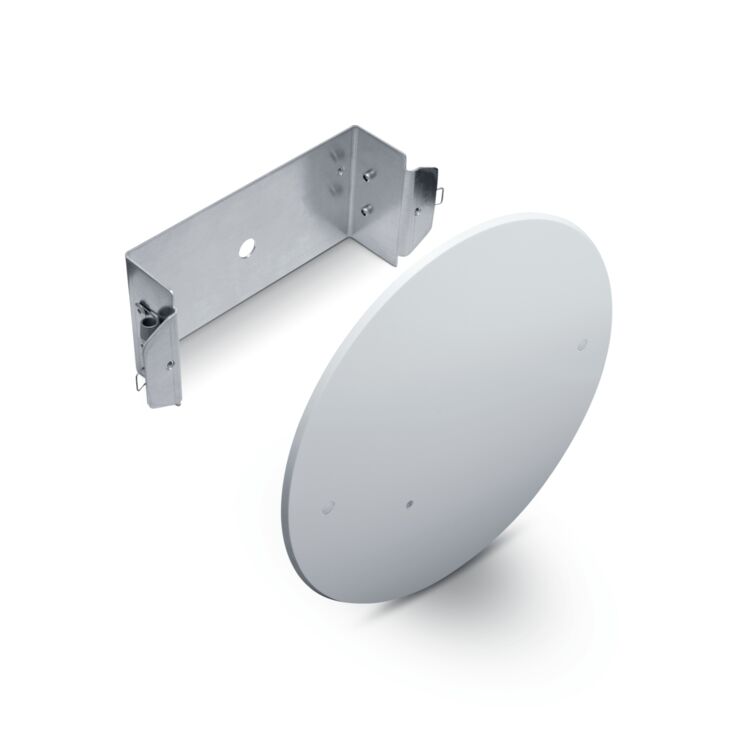

Ceiling installation kit GC 302
Accessories

Ceiling installation kit GC 302

Installation kit for attaching the detector to the ceiling

Product details

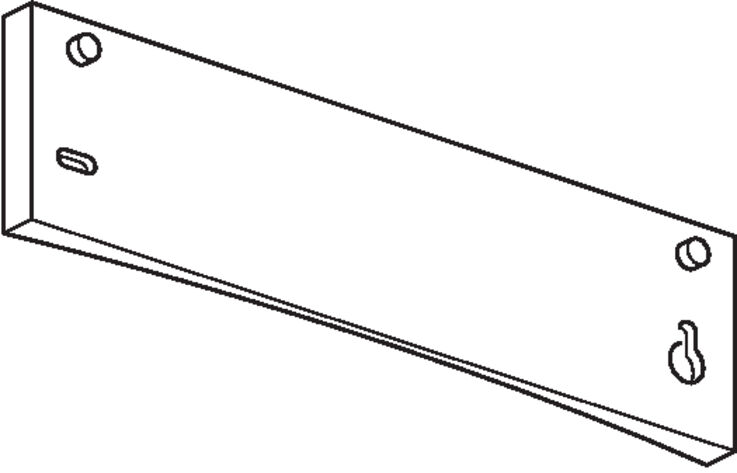

Curved adaptor GC 302, up to 4 m
Accessories

Curved adapter GC 302, up to 4 m

Accessories for the GC 302 radar movement detector

Product details
