Revo.PURE manual Manual revolving door system for three- or four-leaf doors
- Advanced drive technology, combined with the latest GEZE control technology, ensures maximum ease of access whilst keeping energy consumption low
- More cost-effective than automatic drives, since safety devices according to EN 16005 are no longer needed
- Customised selection of diameter, passage height and surfaces
- Effective insulation effect against draughts, weather and noise
- Easy assembly of the door system without lifting tools
As the entry-level model in the GEZE revolving door range, the Revo.PURE combines reliable GEZE technology with a clean, minimalist design. It is the ideal solution for entrance areas where a cost-effective solution is required without compromising on quality.
Application Areas
- Three- and four-leaf door systems
- Interior and exterior doors with high access frequency
- Representative building entrances with large incidence of light
- Façades with slim mullion-transom constructions
- Inner diameter from 1800 to 3800 mm possible

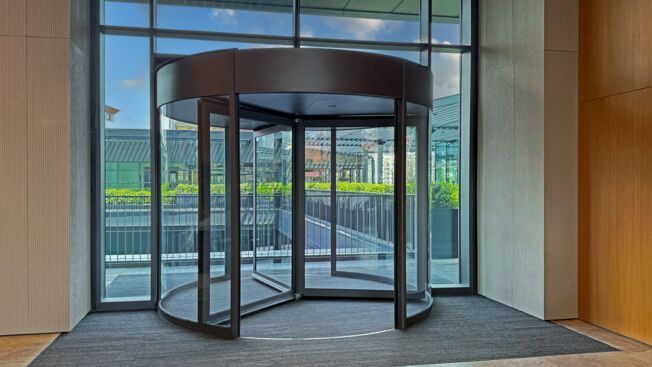

Installation situations in reference objects and videos
Revo.PURE
© GEZE Turkey
Revo.PURE
© GEZE Turkey
Technical data
| Revo.PURE manual | |
| Manual operation | Yes |
| With speed limiter (optional) | No |
| Break-out function (BO) | No |
| Inner diameter (min.) | 1800 mm |
| Inner diameter (max.) | 3800 mm |
| For 3-leaf door systems | Yes |
| For 4-leaf door systems | Yes |
| Clear passage height | 3000 mm |
| Canopy height (min.) | 200 mm |
| Side elements version | 8 mm LSG |
| Version of roof structure | optical sheet metal covering, waterproof roof with waterspout |
| Illumination | with roof variant, according to customer wishes |
| Floor covering | Entrance mat, Entrance mat, according to the customer’s request |
| Hot-air curtain system | hot water air curtain, Electric air curtain, possible, depends on the ceiling construction |
| Night-time closer layout | Outside |
| Night-time closer type | Manual |
| Night-time closer design | 8 mm LSG |
| Lock | Manual |
| Door handles horizontal or vertical | Yes |
| Floor ring | Yes |
Downloads

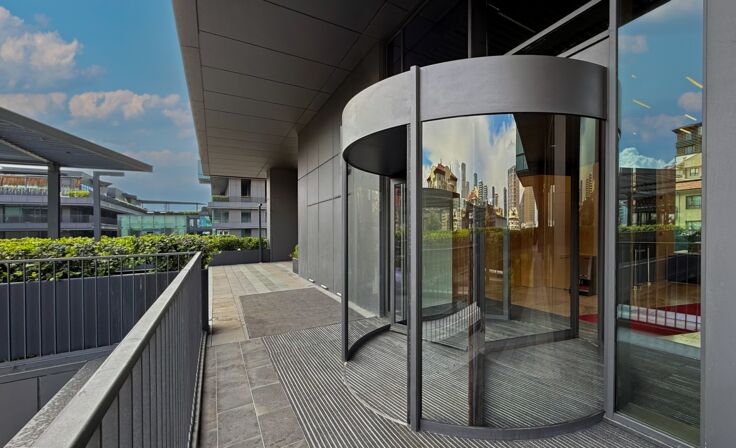

Installation situation
Revo.PURE
KENNZEICHNUNGSPFLICHT:
© GEZE Turkey
Revo.PURE
KENNZEICHNUNGSPFLICHT:
© GEZE Turkey
Tender texts
Type examination certificate
User manual
Installation instructions
Product brochure
Certificate
Product data sheet
