Terminal for bi-directional escape routes - T 320 Series
Terminal T 320 AP - EN 13637 Slave control unit for bidirectional escape routes with a TZ 320 with integrated key switch
- Flat impact cover enables fast and safe activation of the illuminated emergency push button in panic situations
- Coloured connectors facilitate electrical connection
- Integrated key switch enables authorised passing through the emergency exit
- Illuminated emergency exit sign improves visibility
Application Areas
- Terminal functions as additional interface for a TZ 320 to trigger an indirect release of a bi-directional emergency exit
- Realisation of a bidirectional emergency exit
- Realisation of an escape balcony
Technical data
| Terminal T 320 AP - EN 13637 | |
| Width | 77 mm |
| Height | 197 mm |
| Depth | 88 mm |
| Type of installation | Surface-mounted |
| Service temperature | -10 - 55 °C |
| IP rating | IP30 |
| Operating voltage | 24 V DC |
| Current consumption | 130 mA |
| Supply voltage | 24 V DC |
| Sabotage contact | Yes |
| Emergency push button | Yes |
| Visual display | yes |
| Volume | 75 db |
| Type of cylinder | Euro profile half cylinder |
| With ribbon cable | Yes |
| Conforms to the EltVTR (guidelines for electronic locking systems) | No |
| Conforms to EN 13637 | Yes |
Downloads
Product shot

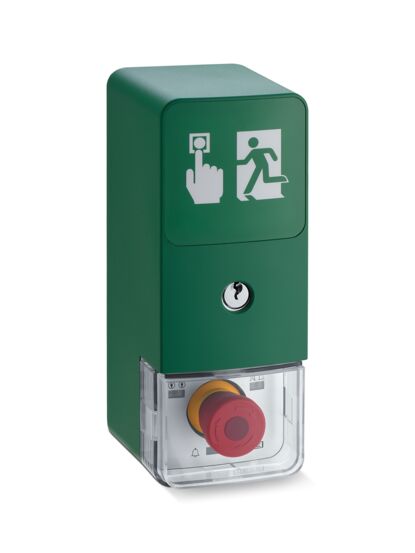

TZ AP plastic, green, EN 13637
