Sensor switch
LED sensor switch Switch for activating automatic doors
- Touch-sensitive capacitive push button with blue/red LED illumination
- High-quality and hygienic activation with visual feedback of the activation command
- Also available with Braille tactile lettering
- Available with glass or plastic border
- IP rating IP69
- Long service life - more than 100 million hystereses
Application Areas
- For activation of all GEZE automatic doors
- Flush-mounted installation
Installation situations in reference objects and videos

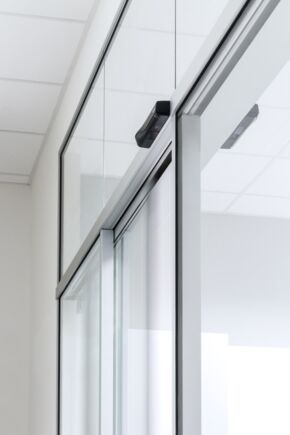

Slimdrive SL NT + GC 363 + LED sensor button
Installation situation Slimdrive SL NT + GC 363 + LED sensor button. © GEZE GmbH

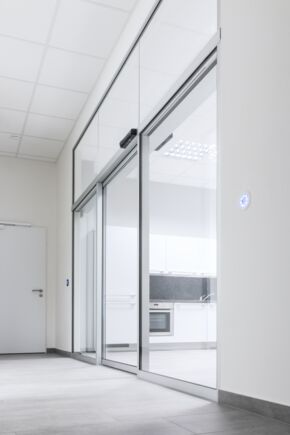

Slimdrive SL NT + GC 363 + LED sensor button, East Office
Automatic linear sliding door system with low height and clear design line, very smooth-running low-wear drive. © GEZE GmbH
Technical data
| LED sensor switch | |
| Dimensions | 100 x 100 x 10 mm |
| Current consumption | 30 mA |
| Output | PNP transistor output |
| IP rating | IP69 |
| Type of installation | Flush-mounted installation |
| Connection type | Cable prepared for connection to screw terminal |
| Connector cable length | 200 mm |
| Service temperature | -30 - 80 °C |
Downloads
Product shot
LED sensor switch
KENNZEICHNUNGSPFLICHT:
© GEZE GmbH

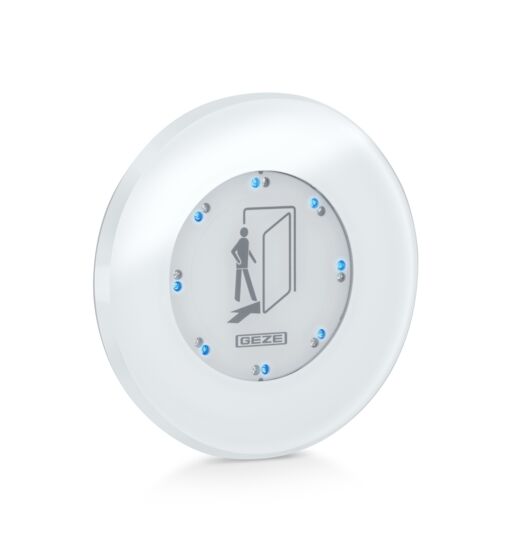

LED sensor switch glass
KENNZEICHNUNGSPFLICHT:
© GEZE GmbH
Installation situation
Slimdrive SL NT + GC 363 + LED sensor button
KENNZEICHNUNGSPFLICHT:
© GEZE GmbH
Slimdrive SL NT + GC 363 + LED sensor button, East Office
KENNZEICHNUNGSPFLICHT:
© GEZE GmbH
Tender texts
Declaration of conformity
Installation instructions
Product brochure
Product data sheet
