Locks and strike boxes

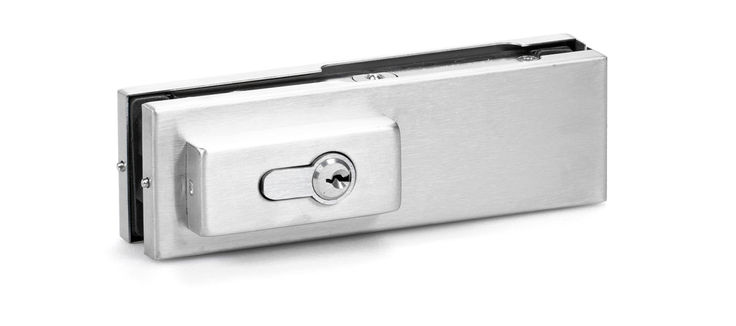

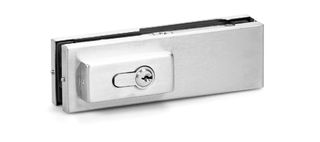

PL 50 RD Glass Fitting corner patch lock with round bolt
- Elegant cover caps made of polished or brushed stainless steel
- Problem-free adjustment to glass thicknesses of 10 – 12 mm
Application Areas
- For full-glass doors
- For glass thicknesses 10 and 12 mm
- For single-action and double-action doors
- For internal and external systems
- Suitable for single and double leaf swing doors
Technical data
| PL 50 RD | |
| Dimensions | 163 x 32 x 51 mm |
| Width | 32 mm |
| Length | 163 mm |
| Height | 51 mm |
| Pane thickness (min.) | 10 mm |
| Pane thickness (max.) | 12 mm |
| Type of installation | Glass installation |
Downloads
GEZE Glass Fitting PL 50 RD
LABELLING OBLIGATION: © GEZE GmbH
Variants & Accessories
