Fan light and connector patches

PT 30 Glass Fitting fanlight fitting with pivot bearing bolts (ø 15 mm) and wall attachment accessories

GEZE Glass Fitting PT 30 Glass fitting
  • Elegant cover caps made of polished or brushed stainless steel
  • Problem-free adjustment to glass thicknesses of 10 – 12 mm
Contact us

PT 30

Application Areas

  • For static toughened glass assemblies
  • For glass thicknesses 10 and 12 mm
  • For internal and external systems

Technical data

PT 30
Dimensions 163 x 32 x 51 mm
Width 32 mm
Length 163 mm
Height 51 mm
Pane thickness (min.) 10 mm
Pane thickness (max.) 12 mm
Type of installation Glass installation

Downloads

GEZE Glass Fitting PT 30

LABELLING OBLIGATION:  © GEZE GmbH

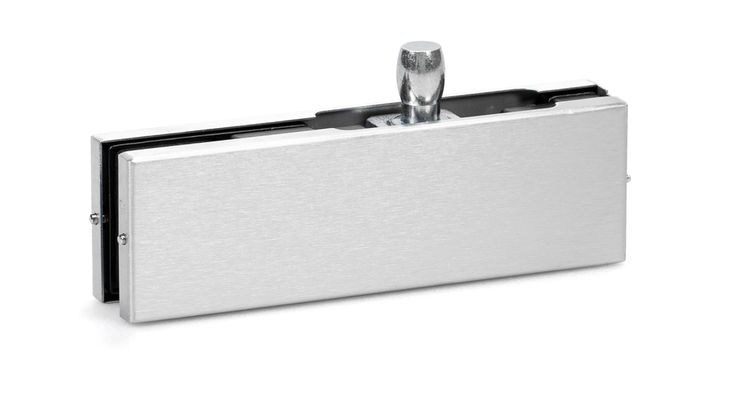

Product shot (45438)
