Corner fittings and pivot bearing

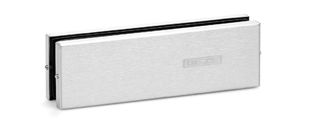

PT 10 Bottom side-hung leaf corner fitting with mount for flat conical spindle
- Elegant cover caps made of polished or brushed stainless steel
- Problem-free adjustment to glass thicknesses of 10 – 12 mm
Application Areas
- For full-glass doors
- For glass thicknesses 10 and 12 mm
- Door leaf weights up to 100 kg, door leaf widths up to 1,000 mm, door leaf heights up to 2,800 mm
- For single-action and double-action doors
- For internal and external systems
- Suitable for single and double leaf swing doors
Technical data
| PT 10 | |
| Dimensions | 163 x 32 x 51 mm |
| Width | 32 mm |
| Length | 163 mm |
| Height | 51 mm |
| Pane thickness (min.) | 10 mm |
| Pane thickness (max.) | 12 mm |
| Type of installation | Glass installation |
Downloads
GEZE PT 10
