Building automation systems

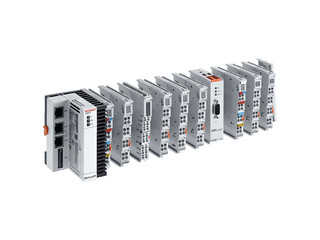

myGEZE Control maximum system expansion Controller system as maximum system expansion with GEZE CAN bus, I/O technology and KNX to connect all GEZE products and third-party products.

myGEZE Control
  • System consists of: basic device, 10x 8-channel digital input terminals, 24 V DC potential distribution terminals, power supply terminals, 10x 2-channel relay output terminals, 10x 4-channel relay output terminals, 5x CAN master terminals + CAN connectors, E-Bus coupler, 2x KNX/EIB terminals, bus end terminal
  • System is also available without CAN master terminals and digital input and output terminals
  • Maximum system expansion for one control unit, which allows for the connection of up to 200 product systems from the entire product portfolio
  • Comprehensive, project-specific configuration according to user specifications possible (system designation, comment texts, status texts)
  • Time functions and grouped switching commands configurable via scene applications
  • BACnet alarm concept integrated, can be adjusted to customer-specific requirements
Contact us

myGEZE Control maximum system expansion

BACnet Building Controller to connect up to a max. of 200 product systems via 5 CAN-BUS lines, 80 digital input signals (24 V DC), 40 digital output signals (relays), GEZE KNX system

Application Areas

  • BACnet IP integration in building management systems
  • Networking of GEZE products that can be connected with CAN bus technology
  • Networking of non BUS capable components via digital input and output terminals
  • Networking of KNX capable GEZE window drives in the building management system
  • Products suitable for emergency exit systems: TZ 320, TZ 321 and TZ 322
  • Products suitable for automatic door drives: Slimdrive, Powerturn, TSA 325 NT and Revo.PRIME
  • Products suitable for smoke and heat extraction systems: MBZ 300 in different versions
  • Products suitable for window systems: Slimchain, Powerchain, F 1200+ and locking systems
  • For products with I/O technology like GEZE hold-open systems and third-party products
Go to campaign page
BACnet
KNX

Installation situations in reference objects and videos

myGEZE Control

myGEZE Control takes building automation to a new level – optimally aligned with your requirements. For improved safety, sustainable processes, and better comfort.

Downloads

Variants & Accessories

myGEZE Control basic device
Parts

myGEZE Control basic device

Powerful embedded PC for top hat rail mounting with integrated BACnet communication

Product details
Parts

myGEZE Control basic license

License for the basic functions of the GEZE Software Library

Product details
myGEZE Control CAN master terminal
Parts

myGEZE Control CAN master terminal

Master in terminal system for integration of the GEZE CAN devices over multiple bus lines

Product details
