Panic locks for tubular framed doors

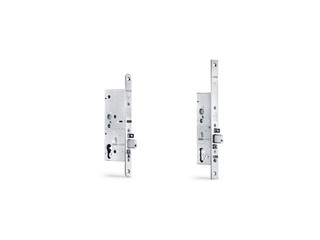

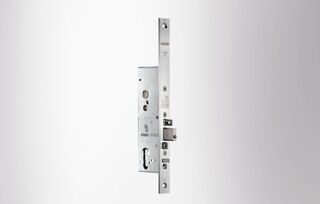

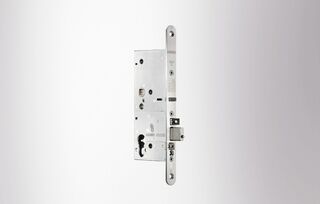

IQ lock M DL Mechanical panic lock for simple panic functions on double leaf doors

IQ Lock M DL
  • Mechanical self-locking ensures automatic crossbar projection every time the door is closed
  • Unlocking of active leaf by activating passive leaf (full panic function)
  • Divided cross latch prevents the bolt from locking even under side-load
  • Small rear backset and small dimensions of the lock case
  • Can be combined with electronic thumbturn cylinders
Contact us

IQ lock M DL

Application Areas

  • Double leaf emergency exit and panic doors (left hand and right hand door)
  • Doors along escape and rescue routes
  • Fire and smoke protection doors

Technical data

IQ lock M DL
DIN direction left / right
Service temperature -10 - 50 °C
Panic function / mechanical self-locking Yes
Divided cross latch (3 mm gap between latch and bolt) Yes
Current consumption N/A, N/A
Resistant to forcing 10000 N

Downloads

Variants & Accessories

Strike box solid leaf
Accessories

Strike box solid leaf

Mechanical strike box as passive leaf rod locking element on double leaf doors

Product details
Strike box long
Accessories

Strike box tubular frame doors, long

Mechanical strike box as passive leaf rod locking element on double leaf doors

Product details
Strike box short
Accessories

Tubular frame strike box

Mechanical strike box as passive leaf rod locking element on double leaf doors

Product details
