Panic locks for tubular framed doors

IQ lock EL Electro-mechanical motor lock for the combination with swing door drives on single leaf doors

Motor-driven unlocking of the door in less than one second
Mechanical self-locking ensures automatic deadbolt projection every time the door is closed
Panic function which opens (even locked) emergency exits in the direction of escape
Divided cross latch prevents the bolt from locking even under side-load
Electric sequential control ensures secure locking of the door
Various modes of operation for every possible situation

Integrated feedback contacts make complete monitoring of the door possible
Optional sabotage monitoring or cylinder contact
Small rear backset and small dimensions of the lock case

Application Areas

Single leaf emergency exit and panic doors
Doors along escape and rescue routes
Fire and smoke protection doors (with MST 210 motor lock control)
SHEV air inlet doors
Access control systems
Can be combined with GEZE automatic swing door systems

Technical data

	IQ lock EL
DIN direction	left / right
Service temperature	-10 - 50 °C
Motor-driven unlocking	< 1 s
Panic function / mechanical self-locking	Yes
Divided cross latch (3 mm gap between latch and bolt)	Yes
Electric sequential control	Yes
Three modes of operation (daytime operation / permanently unlocked / permanently night)	Yes
Feedback contacts for lock states	Yes
Optional sabotage monitoring or cylinder contact	Yes
Activation	External contact
Current consumption	80 mA at 24V / 400 mA at 24V short-term, 160 mA at 12V / 1 A at 12V short-term
Contact rating	30 V / 500 mA
Resistant to forcing	10000 N
Connector cable length	15 m

Downloads

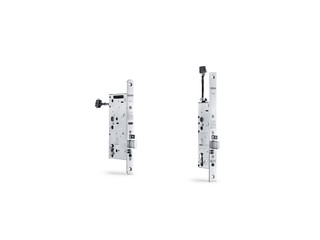

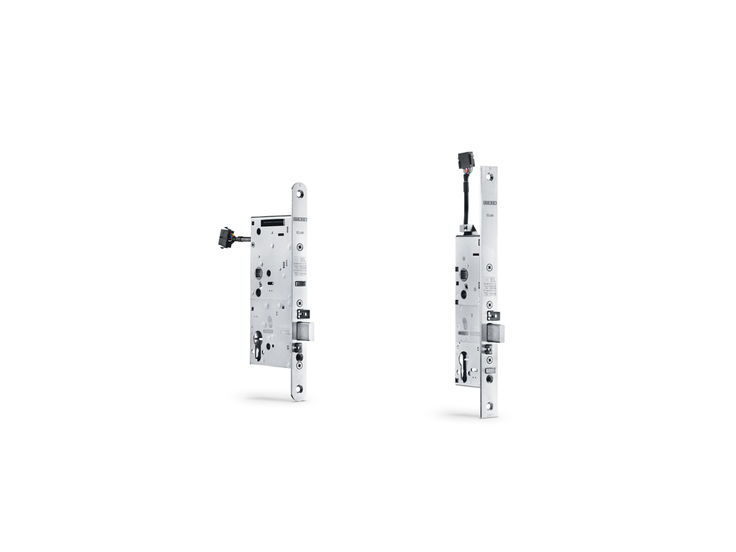

Product shot

IQ lock EL

LABELLING OBLIGATION: © GEZE GmbH

Variants & Accessories

Accessories
Variants

Accessories

MST 210

Motor lock control for IQ lock EL and IQ lock EL DL

Product details

Accessories

Removable drip loop

Guide of the connector cable to the door leaf

Product details

Accessories

GC Lock Control SHEV

Additional control unit for motor locks for 12 V or 24 V motor locks on an SHEV air inlet door

Product details

Show differences only

Ident-No.	Description	Distance lock	Backset	DIN direction	Face plate dimensions	Supply voltage	Colour
103640	for tubular-framed doors / with rectangular face plate 24 x 270 x 3 mm / Operating voltage: 12 - 24 V DC / Current consumption: / 80 mA / 24 V; 160 mA / 12V / max. current consumption (short-term): / 400 mA / 24 V; 1 A / 12 V	92 mm	35 mm	left / right	24 x 270 x 3 mm	12 - 24 V DC	EV1
121822	for tubular-framed doors / with rectangular face plate 24 x 270 x 3 mm / Operating voltage: 12 - 24 V DC / Current consumption: / 80 mA / 24 V; 160 mA / 12V / max. current consumption (short-term): / 400 mA / 24 V; 1 A / 12 V	92 mm	40 mm	left / right	24 x 270 x 3 mm	12 - 24 V DC	EV1
115021	for tubular-framed doors / with rectangular face plate 24 x 270 x 3 mm / Operating voltage: 12 - 24 V DC / Current consumption: / 80 mA / 24 V; 160 mA / 12V / max. current consumption (short-term): / 400 mA / 24 V; 1 A / 12 V	92 mm	40 mm	left / right	24 x 270 x 3 mm	12 - 24 V DC	EV1
121821	for tubular-framed doors / with rectangular face plate 24 x 270 x 3 mm / Operating voltage: 12 - 24 V DC / Current consumption: / 80 mA / 24 V; 160 mA / 12V / max. current consumption (short-term): / 400 mA / 24 V; 1 A / 12 V	92 mm	35 mm	left / right	24 x 270 x 3 mm	12 - 24 V DC	EV1
121826	for solid leaf doors / with round face plate 20 x 235 x 3 mm / Operating voltage: 12 - 24 V DC / Current consumption: / 80 mA / 24 V; 160 mA / 12V / max. current consumption (short-term): / 400 mA / 24 V; 1 A / 12 V	72 mm	80 mm	left / right	20 x 235 x 3 mm	12 - 24 V DC	EV1
103641	for tubular-framed doors / with rectangular face plate 24 x 270 x 3 mm / Operating voltage: 12 - 24 V DC / Current consumption: / 80 mA / 24 V; 160 mA / 12V / max. current consumption (short-term): / 400 mA / 24 V; 1 A / 12 V	92 mm	45 mm	left / right	24 x 270 x 3 mm	12 - 24 V DC	EV1
103644	for solid leaf doors / with round face plate 20 x 235 x 3 mm / Operating voltage: 12 - 24 V DC / Current consumption: / 80 mA / 24 V; 160 mA / 12V / max. current consumption (short-term): / 400 mA / 24 V; 1 A / 12 V	72 mm	80 mm	left / right	20 x 235 x 3 mm	12 - 24 V DC	EV1
103643	for solid leaf doors / with round face plate 20 x 235 x 3 mm / Operating voltage: 12 - 24 V DC / Current consumption: / 80 mA / 24 V; 160 mA / 12V / max. current consumption (short-term): / 400 mA / 24 V; 1 A / 12 V	72 mm	65 mm	left / right	20 x 235 x 3 mm	12 - 24 V DC	EV1
121827	for solid leaf doors / with round face plate 20 x 235 x 3 mm / Operating voltage: 12 - 24 V DC / Current consumption: / 80 mA / 24 V; 160 mA / 12V / max. current consumption (short-term): / 400 mA / 24 V; 1 A / 12 V	72 mm	100 mm	left / right	20 x 235 x 3 mm	12 - 24 V DC	EV1
121824	for solid leaf doors / with round face plate 20 x 235 x 3 mm / Operating voltage: 12 - 24 V DC / Current consumption: / 80 mA / 24 V; 160 mA / 12V / max. current consumption (short-term): / 400 mA / 24 V; 1 A / 12 V	72 mm	55 mm	left / right	20 x 235 x 3 mm	12 - 24 V DC	EV1
121825	for solid leaf doors / with round face plate 20 x 235 x 3 mm / Operating voltage: 12 - 24 V DC / Current consumption: / 80 mA / 24 V; 160 mA / 12V / max. current consumption (short-term): / 400 mA / 24 V; 1 A / 12 V	72 mm	65 mm	left / right	20 x 235 x 3 mm	12 - 24 V DC	EV1
121823	for tubular-framed doors / with rectangular face plate 24 x 270 x 3 mm / Operating voltage: 12 - 24 V DC / Current consumption: / 80 mA / 24 V; 160 mA / 12V / max. current consumption (short-term): / 400 mA / 24 V; 1 A / 12 V	92 mm	45 mm	left / right	24 x 270 x 3 mm	12 - 24 V DC	EV1
103695	for solid leaf doors / with round face plate 20 x 235 x 3 mm / Operating voltage: 12 - 24 V DC / Current consumption: / 80 mA / 24 V; 160 mA / 12V / max. current consumption (short-term): / 400 mA / 24 V; 1 A / 12 V	72 mm	100 mm	left / right	20 x 235 x 3 mm	12 - 24 V DC	EV1
103642	for solid leaf doors / with round face plate 20 x 235 x 3 mm / Operating voltage: 12 - 24 V DC / Current consumption: / 80 mA / 24 V; 160 mA / 12V / max. current consumption (short-term): / 400 mA / 24 V; 1 A / 12 V	72 mm	55 mm	left / right	20 x 235 x 3 mm	12 - 24 V DC	EV1
