Locking elements

FTV 320 Escape door lock for doors in rescue routes

Unique cross latch mechanism guarantees secure locking
Integrated feedback contact ensures reliable monitoring of the door
Integrated sabotage monitoring secures the lock against manipulation
Variety of face plates and accessories offers a solution for almost every door situation

Application Areas

EltVTR-compliant locking of an emergency exit to prevent unauthorised access
Single and double leaf doors
Installation in the frame or the door leaf ensures a tidy appearance
Can be used for numerous other safety solutions that require a fail-safe principle

This product has been awarded

Technical data

	FTV 320
Width	15 mm
Height	138 mm
Depth	37 mm
Type of installation	in the door frame, in the door leaf
Service temperature	-20 - 60 °C
IP rating	IP30
Operating voltage	24 V DC
Current consumption	100 mA
Conforms to the EltVTR (guidelines for electronic locking systems for doors on rescue routes)	Yes
Conforms to EN 13637	Yes

Downloads

Product shot

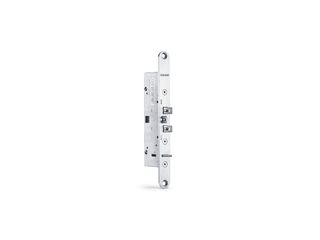

FTV 320 with face plate

LABELLING OBLIGATION: © GEZE GmbH

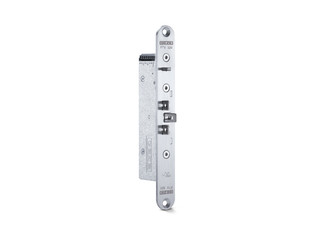

Escape door lock FTV 320 with face plate

LABELLING OBLIGATION: © GEZE GmbH

Escape door lock FTV 320 with face plate

LABELLING OBLIGATION: © GEZE GmbH

FTV 320 with face plate

LABELLING OBLIGATION: © GEZE GmbH

FTV 320 with face plate

LABELLING OBLIGATION: © GEZE GmbH

FTV 320 with face plate

LABELLING OBLIGATION: © GEZE GmbH

Tender texts

GEZE FTV 320 Escape door lock

Download (.DOCX | 26 KB)

GEZE Service automatic for emergency exit systems

Download (.DOC | 38 KB)

GEZE Service emergency exit systems

Download (.DOC | 36 KB)

GEZE Terminal IP 54 stainless steel external application

Download (.DOC | 81 KB)

GEZE TZ 320 Comfort with KL 220

Download (.DOC | 72 KB)

TZ 320 for bi-directional escape route

Download (.DOCX | 32 KB)

TZ 320 Stainless steel RFID

Download (.DOC | 78 KB)

Flyer/folder

Download (.PDF | 7 MB)

Download (.PDF | 434 KB)

Product brochure

Download (.PDF | 2 MB)

Download (.PDF | 10 MB)

Variants & Accessories

Variants

Show differences only

Ident-No.

Designation

Description

Face plate dimensions

Dimensions

Operating voltage

DIN direction

Type of installation

Side-load

Feedback contact door

Latch engagement depth

Fail-secure

IP rating

Material

Conforms to the EltVTR (guidelines for electronic locking systems for doors on rescue routes)

Shape

158907

FTV 320 escape door lock

Face plate 22 x 220 x 3 mm, rectangular for tubular-framed doors / Face plate pre-mounted DIN direction: L/R universal Dimensions FTV 320: 15 x 139 x 37 mm Design: fail-safe Operating voltage: 24 V DC Current consumption locked: 100 mA Resistance against breaking open at least 5 kN Side-load: at least 3 kN Service temperature: -20 to +60 °C

22 x 220 x 3 mm

15 x 138 x 37 mm

24 V DC

left / right

in the door frame, in the door leaf

3000 N

Yes

6 mm

IP30

Precision cast steel

Yes

rectangular

158908

FTV 320 escape door lock

Face plate 24 x 200 x 3 mm, rectangular for tubular-framed doors / Face plate pre-mounted DIN direction: L/R universal Dimensions FTV 320: 15 x 139 x 37 mm Design: fail-safe Operating voltage: 24 V DC Current consumption locked: 100 mA Resistance against breaking open at least 5 kN Side-load: at least 3 kN Service temperature: -20 to +60 °C

24 x 200 x 3 mm

15 x 138 x 37 mm

24 V DC

left / right

in the door frame, in the door leaf

3000 N

Yes

6 mm

IP30

Precision cast steel

Yes

rectangular

158906

FTV 320 escape door lock

Face plate 20 x 200 x 3 mm, round for solid leaf doors (wood) / Face plate pre-mounted DIN direction: L/R universal Dimensions FTV 320: 15 x 139 x 37 mm Design: fail-safe Operating voltage: 24 V DC Current consumption locked: 100 mA Resistance against breaking open at least 5 kN Side-load: at least 3 kN Service temperature: -20 to +60 °C

20 x 200 x 3 mm

15 x 138 x 37 mm

24 V DC

left / right

in the door frame, in the door leaf

3000 N

Yes

6 mm

IP30

Precision cast steel

Yes

round

158911

FTV 320 escape door lock

Face plate 30 x 200 x 3 mm, rectangular for tubular-framed doors / Face plate pre-mounted DIN direction: L/R universal Dimensions FTV 320: 15 x 139 x 37 mm Design: fail-safe Operating voltage: 24 V DC Current consumption locked: 100 mA Resistance against breaking open at least 5 kN Side-load: at least 3 kN Service temperature: -20 to +60 °C

30 x 200 x 3 mm

15 x 138 x 37 mm

24 V DC

left / right

in the door frame, in the door leaf

3000 N

Yes

6 mm

IP30

Precision cast steel

Yes

rectangular

158914

FTV 320 escape door lock

Face plate with lock latch guide 35 x 200 x 3 mm, rectangular, exchange variant FTÖ 331 / Face plate pre-mounted DIN direction: L/R universal Dimensions FTV 320: 15 x 139 x 37 mm Design: fail-safe Operating voltage: 24 V DC Current consumption locked: 100 mA Resistance against breaking open at least 5 kN Side-load: at least 3 kN Service temperature: -20 to +60 °C

35 x 200 x 3 mm

15 x 138 x 37 mm

24 V DC

left / right

in the door frame, in the door leaf

3000 N

Yes

6 mm

IP30

Precision cast steel

Yes

rectangular

158912

FTV 320 escape door lock

Angled face plate 30 x 48 x 220 x 3 mm, rectangular Alternative version FTÖ 331 / Face plate pre-mounted DIN direction: L/R universal Dimensions FTV 320: 15 x 139 x 37 mm Design: fail-safe Operating voltage: 24 V DC Current consumption locked: 100 mA Resistance against breaking open at least 5 kN Side-load: at least 3 kN Service temperature: -20 to +60 °C

30 x 48 x 220 x 3 mm

15 x 138 x 37 mm

24 V DC

left / right

in the door frame, in the door leaf

3000 N

Yes

6 mm

IP30

Precision cast steel

Yes

rectangular

158910

FTV 320 escape door lock

Face plate 28 x 200 x 3 mm, rectangular for tubular-framed doors / Face plate pre-mounted DIN direction: L/R universal Dimensions FTV 320: 15 x 139 x 37 mm Design: fail-safe Operating voltage: 24 V DC Current consumption locked: 100 mA Resistance against breaking open at least 5 kN Side-load: at least 3 kN Service temperature: -20 to +60 °C

28 x 200 x 3 mm

15 x 138 x 37 mm

24 V DC

left / right

in the door frame, in the door leaf

3000 N

Yes

6 mm

IP30

Precision cast steel

Yes

rectangular

158909

FTV 320 escape door lock

Face plate 24 x 200 x 3 mm, round for solid leaf doors (steel) / Face plate pre-mounted DIN direction: L/R universal Dimensions FTV 320: 15 x 139 x 37 mm Design: fail-safe Operating voltage: 24 V DC Current consumption locked: 100 mA Resistance against breaking open at least 5 kN Side-load: at least 3 kN Service temperature: -20 to +60 °C

24 x 200 x 3 mm

15 x 138 x 37 mm

24 V DC

left / right

in the door frame, in the door leaf

3000 N

Yes

6 mm

IP30

Precision cast steel

Yes

round

158913

FTV 320 escape door lock

Face plate 25 x 200 x 3 mm, rectangular, exchange variant FTÖ 331 / Face plate pre-mounted DIN direction: L/R universal Dimensions FTV 320: 15 x 139 x 37 mm Design: fail-safe Operating voltage: 24 V DC Current consumption locked: 100 mA Resistance against breaking open at least 5 kN Side-load: at least 3 kN Service temperature: -20 to +60 °C

25 x 200 x 3 mm

15 x 138 x 37 mm

24 V DC

left / right

in the door frame, in the door leaf

3000 N

Yes

6 mm

IP30

Precision cast steel

Yes

rectangular

How can we help you?

GEZE services

Regular maintenance ensures functionality and maintains the value of your systems.

Store locator

Find the right retailer for your GEZE products quickly and easily.

Workshops

We offer a comprehensive qualification programme for GEZE products and current specialist topics.

Spare parts

We stock a full range of original spare parts, including for older systems.

Contact

We would be happy to assist you +49-7152-203-0 Mo–Thu: 7.30 a.m. – 5 p.m. / Fri: 7.30 a.m. – 4 p.m Hotline for architects +49-7152-203-112 Mo-Thu: 9:00 a.m. - 4:00 p.m. / Fri: 9:00 a.m. - 3:00 p.m. Service Hotline +49-1802-923392 (0.06 € / Calling from landline, mobile telephony max. 0.42 €)

FTV 320 Escape door lock for doors in rescue routes

FTV 320

Application Areas

This product has been awarded

Technical data

Downloads

Product shot

Product data sheet

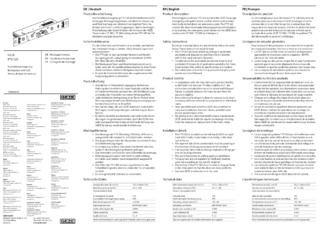

Installation instructions
