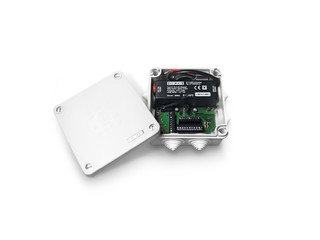

KL 220 AP Terminal box for extending the number of analogue inputs and outputs for a TZ 32x

GEZE KL 220 Extension of the functions of the door control unit TZ 320, 08931
  • For convenient connection to a TZ 32x door control unit via RS485
  • High IP protection guarantees reliable function even in a demanding environment
Contact us

KL 220 AP

Application Areas

  • For extending the connection possibilities to a GEZE TZ 32x by configurable inputs and outputs
  • Simple installation thanks to surface-mounted design e.g. in a suspended ceiling
  • Separate installation makes convenient cabling of an emergency exit system with comprehensive peripheral equipment possible

Technical data

KL 220 AP
Width 113 mm
Height 113 mm
Depth 58 mm
Type of installation Surface-mounted
Service temperature -10 - 50 °C
IP rating IP54
Operating voltage 24 V DC
Current consumption 80 mA
Supply voltage 230 V
Power supply for external consumers (24 V DC) 600 mA
Sabotage contact Yes
Number of inputs 4 Stk.
Number of outputs 6 Stk.
