GCER 300

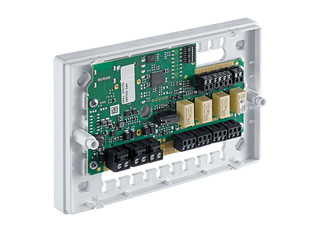

GCER 300 I/O Box GCER 300 2-door access control
- Access authorisation through ID card or 4-6 digit PIN code
- The system supports RFID identification media in the 13.56 MHz range (ISO14443A)
- Access authorisations can be created quickly and easily, and be deleted as well
- Creation and management of up to 200 persons
Application Areas

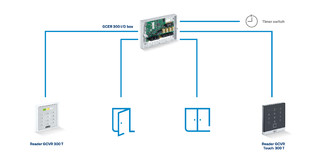

- Access control solution for one or two doors
Installation situations in reference objects and videos
Technical data
GCER 300 I/O Box | |
Dimensions | 150 x 100 x 36 mm |
Service temperature | -20 - 60 °C |
Type of installation | Surface-mounted installation |
IP rating | IP30 |
Operating voltage | 8 - 30 V DC |
Number of persons (recommended) | 200 |
Number of relays | 4 Stk. |
Number of inputs | 4 Stk. |
Number of outputs | 4 Stk. |
Number of readers | 2 Stk. |
Master card system for programming the authorisations | Yes |
Office mode | Yes |
