Opening drives

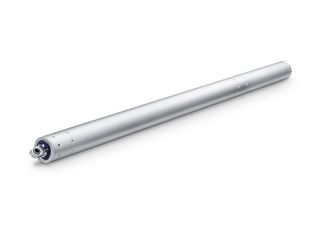

E 1500 N Spindle drive with slim dimensions for heavy leaves in the façade and roof area
- Slim dimensions and an aluminium housing for highest design demands
- Robust and corrosion-resistant design with built-in end position damping
- Syncro drive sets are available for leaf widths over 1200 mm
- Extensive brackets allow versatile installation on main or secondary closing edges
- Syncro set without external control unit
Application Areas

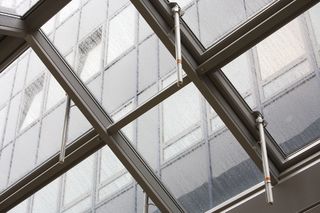

- Heavy window elements in the façade and roof area
- Natural ventilation, smoke and heat extraction systems
- Inward- and outward opening windows with bottom-hung, top-hung and side-hung leaves as well as roof windows
- Can be used in the exhaust air and air inlet system
- Installation on wooden, PVC or metal windows
Technical data
| E 1500 N | |
| Dimensions | 36 x 36 mm |
| Opening speed RWA | 4 mm/s |
| Opening speed ventilation | 4 mm/s |
| Closing speed (max.) | 4 mm/s |
| Locking force (max.) | 5000 N |
| Compressive force | 1600 N |
| Tensile force | 1600 N |
| Voltage at operation | 24 V (+25 % to -20 %) |
| Operating voltage | 24 V DC |
| Current consumption | 1.2 A |
| Power consumption | 29 W |
| Residual ripple | 20 % |
| Duty rating | 30 % |
| Connector cable length | 2.5 m |
| Special length of connector cable | 5 m, 10 m |
| Min. core cross section | 1 mm² |
| Number of cores | 3 cores |
| Service temperature | -5 - 75 °C |
| IP rating | IP65 |
| protection rating | III |
| Syncro function | Yes |
| Type of additional locking mechanism | Locking drive |
| Type of stroke shortening | Factory setting |
| End position cut-off extended | electronic |
| End position cut-off retracted | electronic |
| Overload cut-off | Yes |
| Complete opening within 60 s | yes, up to 300 mm stroke |
| Number synchronisation drive units | 4 |
| Bottom-hung window INWARD-opening frame installation | Yes |
| Bottom-hung window inward opening leaf installation | Yes |
| Bottom-hung window OUTWARD-opening frame installation | Yes |
| Side-hung window INWARD-opening frame installation | Yes |
| Side-hung window INWARD-opening door leaf installation | Yes |
| Side-hung window OUTWARD-opening frame installation | Yes |
| Top-hung window INWARD-opening frame installation | Yes |
| Top-hung window INWARD-opening leaf installation | Yes |
| Top-hung window OUTWARD-opening frame installation | Yes |
| OUTWARD-opening roof window | Yes |
