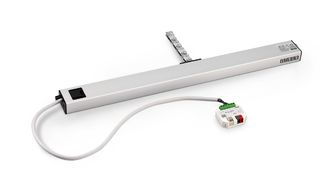

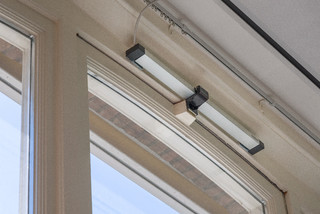

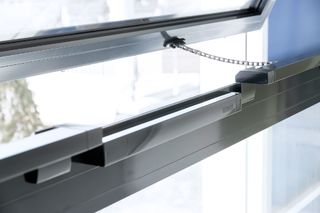

Slimchain Chain drive in an attractive design with numerous possible applications in 24 V version

  • Can be integrated perfectly into the façade design thanks to its slim and discreet look
  • Drive stroke with variable adjustment and individual speeds for ventilation and smoke and heat extraction
  • Available as special version - stroke, cable length, colour and alignment configurable to left hand/right hand door
  • Synchronisation of max. four drives without external control unit
  • DIP switches for changing the mode of operation (Solo and Syncro, master, slave)

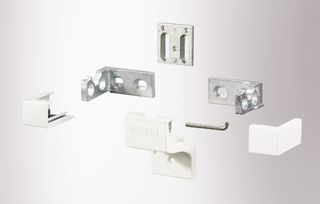

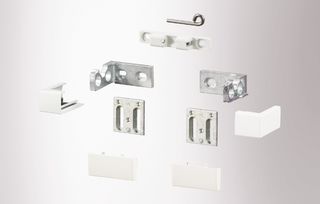

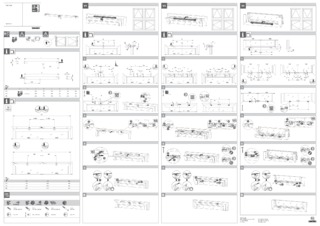

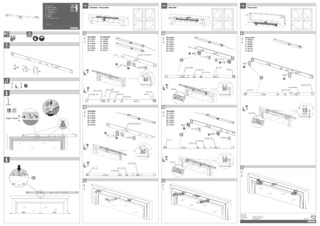

  • Fast and easy installation with the GEZE Smart fix installation system
Show more
  • IQ windowdrive - intelligent drive control
  • SHEV tested according to EN 12101-2
Contact us

Chain drive in an attractive design with numerous possible applications in 24 V version

Application Areas

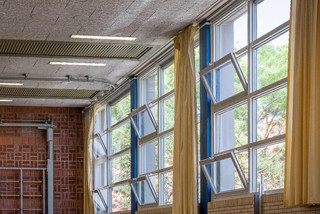

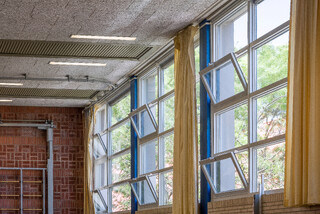

  • Smoke and heat extraction system and natural ventilation (24 V) in the façade area
  • Can be used in exhaust air and fresh air systems

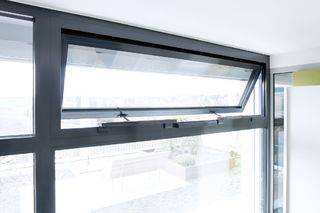

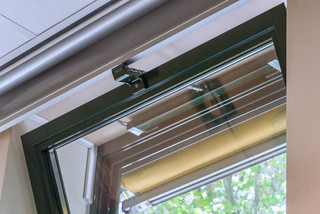

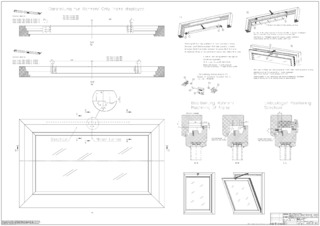

  • Inward-opening and outward-opening windows with bottom-hung, top-hung and side-hung leaves
  • Projected top hung and parallel opening windows
  • Installation on wooden, plastic or metal windows

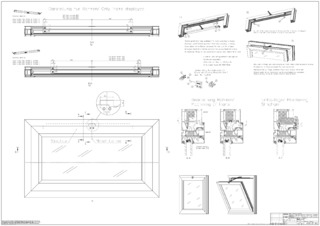

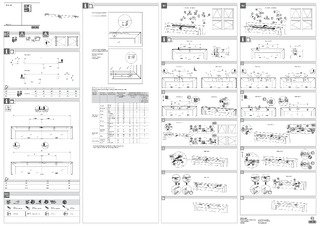

  • Casement, frame or integrated installation
  • System solution in combination with the Power lock locking drive

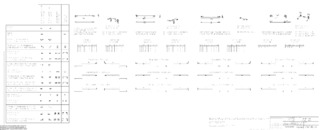

Product specifications

Slimchain
Dimensions (W x H x D) Length x 25 x 44 mm
Length Stroke 300: 560 mm, stroke 500: 660 mm, stroke 800: 810 mm (each with consoles)
Height 25 mm
Installation depth 44 mm
Space required on frame (min.) Frame installation inward-opening: 40 mm, casement installation inward-opening: 16/21 mm, frame installation outward-opening: 31 mm
Space requirement on leaf (min.) Frame installation inward-opening: 40 mm, casement installation inward-opening: 34/29 mm, frame installation outward-opening: 19 mm
Possible stroke heights 300 mm, 500 mm, 800 mm
Opening speed RWA 15 mm/s
Opening speed ventilation 5 mm/s
Tensile force (max.) 300 N

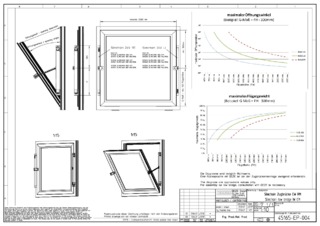

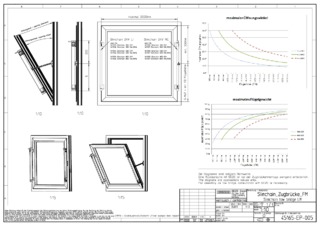

Force of pressure (max.) 100 N (depending on stroke), see force-path diagram
Holding force (max.) 2000 N
Leaf weight (max.) 200 kg*
Overlap range 0 - 23 mm (depending on application and brackets)
Operating voltage 24 V, ± 25 %
Current consumption 1.1 A
Current consumption Ventilation (24 V): 0.9 A; RWA (18 V): 1.1 A
Power consumption (max.) 22 W
Duty rating 30 %
Special length of power supply cable 5 m, 7.5 m
Cable dimensions 4 x 0.75 mm²
Temperature range -5 °C - 70 °C
IP rating / protection rating IP40 / III
Syncro function No
Syncro function Yes
Adjustable opening speed (ventilation) Yes
Additional locking available Yes
Type of additional locking Locking drive
Type of stroke shortening Synchronising unit, Factory setting
End position cut-off extended electronic, via internal path sensor
End position cut-off retracted electronic via current consumption
Overload cut-off Yes
Complete opening within 60 s yes, including locking drive
SHEV tested Yes
SHEV tested yes, including locking drive
Synchronisation (max.) 4 drives
INWARD-opening bottom-hung window frame installation Yes
INWARD-opening bottom-hung window casement installation Yes
OUTWARD-opening bottom-hung window frame installation Yes
OUTWARD-opening bottom-hung window casement installation No
INWARD-opening side-hung window frame installation Yes
INWARD-opening side-hung window casement installation Yes
OUTWARD-opening side-hung window frame installation Yes
OUTWARD-opening side-hung window casement installation No
INWARD-opening top-hung window frame installation Yes
INWARD-opening top-hung window casement installation No
OUTWARD-opening top-hung window frame installation Yes
OUTWARD-opening top-hung window casement installation No
OUTWARD-opening roof window No
Projected top-hung window OUTWARD frame installation Yes
Parallel opening windows OUTWARD frame installation Yes
