Opening drives

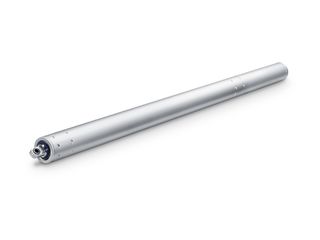

E 3000 Spindle drive for particularly heavy roof windows

  • Very high tensile and compressive force
  • Robust and corrosion-resistant design with built-in end position damping
  • Aluminium housing for the most discerning design demands
  • Extensive consoles allow versatile mounting on main or secondary closing edges
  • Synchronisation of up to four drives possible
  • Tested in accordance with EN 12101-2 (natural smoke and heat extraction devices)
Contact us

Spindle drive for particularly heavy roof windows

Application Areas

  • Very heavy windows in the roof area
  • Natural ventilation, smoke and heat extraction system, natural smoke and heat extraction device
  • Use in the exhaust air system
  • Synchronisation of up to four drives possible
  • Installation on wooden, plastic or metal windows
  • Frame installation

Product specifications

E 3000
Dimensions (W x H x D) Stroke + 465, Ø 50 mm
Height 50 mm
Installation depth 50 mm
Possible stroke heights 300 mm, 500 mm, 750 mm, 1000 mm
Opening speed RWA 7.8 mm/s
Opening speed ventilation 7.8 mm/s
Tensile force (max.) 3000 N
Force of pressure (max.) 3000 N
Holding force (max.) 25000 N
Operating voltage 24 V, ± 25 %
Current consumption 5 A
Power consumption (max.) 91 W
Duty rating 30 %
Length of power supply cable 3 m
Cable dimensions 3 x 1 mm²
Temperature range -5 °C - 75 °C
IP rating / protection rating IP54 / III
Syncro function No
Syncro function Yes
Adjustable opening speed (ventilation) No
Additional locking available No
Type of additional locking Locking drive
Type of stroke shortening Factory setting
End position cut-off extended electronic
End position cut-off retracted electronic
Overload cut-off Yes
Complete opening within 60 s yes, up to 300 mm stroke
SHEV tested Yes
SHEV tested yes, up to 300 mm stroke
Synchronisation (max.) 4 drives
INWARD-opening bottom-hung window frame installation No
INWARD-opening bottom-hung window casement installation No
OUTWARD-opening bottom-hung window frame installation No
OUTWARD-opening bottom-hung window casement installation No
INWARD-opening side-hung window frame installation No
INWARD-opening side-hung window casement installation No
OUTWARD-opening side-hung window frame installation No
OUTWARD-opening side-hung window casement installation No
INWARD-opening top-hung window frame installation No
INWARD-opening top-hung window casement installation No
OUTWARD-opening top-hung window frame installation No
OUTWARD-opening top-hung window casement installation No
OUTWARD-opening roof window Yes
Projected top-hung window OUTWARD frame installation No
Parallel opening windows OUTWARD frame installation No

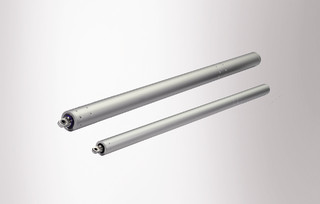

Variants & Accessories
