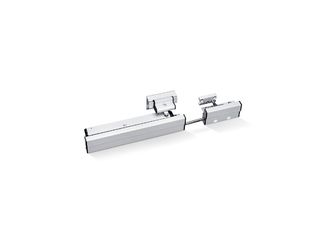

Manual fanlight opener

OL 90 N top-hung outward-opening Surface-mounted slimline skylight opener with an opening width of 170 mm

  • Achieves the full opening width of 170 mm for all leaf heights
  • The opening width can be adjusted
  • Less space necessary thanks to flat design of the scissors
  • Integrated leaf locking mechanism in the scissors ensures secure locking
  • Special locking mechanism increases safety and air-tightness
  • Simple scissor suspension or unhinging by pressing the release button facilitates window cleaning from the inside and outside
Show more
  • Completely pre-mounted assembly groups facilitate installation
  • Leaf bracket fits all overlap heights and materials
Contact us

Surface-mounted slimline skylight opener with an opening width of 170 mm

Application Areas

  • Convenient daily ventilation for rooms and staircases
  • Outward-opening top-hung windows with a reveal depth of 0-60 mm
  • Automation by E 212 electric linear drive
  • Installation on wooden, PVC or aluminium windows
  • Leaf installation

Product specifications

OL 90 N top-hung outward-opening
Length 274 mm
Depth 54 mm
Height 61 mm
Opening width (max.) 170 mm
Leaf width (min.) 400 mm
Min. leaf height 370 mm
Recommended leaf weight up to 80 kg
Fitting stroke 54 mm
Adjustable opening width (stroke reduction) Yes
Leaf lock integrated in the scissor stay Yes
Scissor stay unhooked by release button Yes
Burglary resisting lock (SKG) Yes
Lockable No
Unhinging inhibitor No
