Wireless extensions

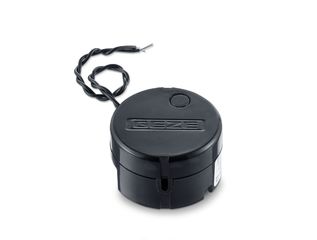

GC 175 Wireless input module for wireless connection of manual trigger switches to the GC 171 wireless module

GC 175 Wireless module Wireless input module for wireless connection of manual trigger switches to the GC 171 wireless module
  • Wireless connection of a manual trigger switch to the GC 171 wireless module
  • Wireless connection of a potential-free contact (e.g. fire alarm system) to the GC 171 wireless module
  • Simple coupling with the GC 171 wireless module
  • Low servicing costs due to long battery life of five years
Contact us

GC 175

Application Areas

  • Installation in listed buildings without structural changes (cable routing)
  • Retrofitting or extension of existing systems

Installation situations in reference objects and videos

FA GC 170 wireless extension The new GEZE wireless kit allows you to connect the ceiling-mounted detectors and manual trigger switch to the lintel-mounted detector on all GEZE hold-open systems wirelessly. It is easy to retrofit, since it does not require the installation of a separate line. This makes planning much easier, in particular in buildings subject to historical preservation requirements.

FA GC 170 wireless extension

The new GEZE wireless kit allows you to connect the ceiling-mounted detectors and manual trigger switch to the lintel-mounted detector on all GEZE hold-open systems wirelessly. It is easy to retrofit, since it does not require the installation of a separate line. This makes planning much easier, in particular in buildings subject to historical preservation requirements. © Annika Feuss / GEZE GmbH

FA GC 170 - Wireless extension The new GEZE wireless kit allows you to wirelessly connect the ceiling-mounted detectors and the manual trigger switch to the lintel-mounted detector on all GEZE hold-open systems. It's easy to retrofit. Because separate cable-laying is no longer needed. This makes planning much easier, in particular in listed buildings.

FA GC 170 - Wireless extension

The new GEZE wireless kit allows you to wirelessly connect the ceiling-mounted detectors and the manual trigger switch to the lintel-mounted detector on all GEZE hold-open systems. It's easy to retrofit. Because separate cable-laying is no longer needed. This makes planning much easier, in particular in listed buildings. © Annika Feuss / GEZE GmbH

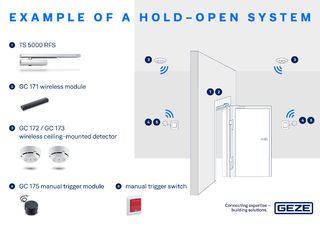

FA GC 170 - Example of a hold-open system The new GEZE wireless kit allows you to connect the ceiling-mounted detectors and manual trigger switch to the lintel-mounted detector on all GEZE hold-open systems wirelessly. It's easy to retrofit because it eliminates the need for separate cable routing. This makes planning much easier, in particular in listed buildings.

FA GC 170 - Example of a hold-open system

The new GEZE wireless kit allows you to connect the ceiling-mounted detectors and manual trigger switch to the lintel-mounted detector on all GEZE hold-open systems wirelessly. It's easy to retrofit because it eliminates the need for separate cable routing. This makes planning much easier, in particular in listed buildings. © GEZE GmbH

EN | Fire protection | RSZ 7 + FA GC 170

// RSZ 7 The new RSZ 7 smoke switch control unit has an adjustable telescopic function and is therefore a flexible solution for early detection of fires even in unfavourable lintel situations, for example where there is little room left over the smoke chamber. // FA GC 170 The GEZE FA GC 170 wireless extension connects the ceiling-mounted detector and manual trigger switch wirelessly with the lintel-mounted detector of GEZE hold-open systems.

GEZE | FA GC 170 wireless extension | Configuration

The GC 171 wireless module makes it possible to connect components for hold-open systems such as ceiling-mounted fire detectors and manual trigger switches wirelessly. This means that no separate cables need to be connected to these components. Teach-in is demonstrated with the GC 171 wireless module, a GC 172 wireless ceiling-mounted smoke detector and a GC 175 wireless input module for a manual trigger switch.

Technical data

GC 175
Dimensions 52 x 52 x 32 mm
Ambient temperature -5 °C - 50 °C
Visual status display Yes
Supply voltage 3 V DC
IP rating IP20
Material Plastic
Type of installation Surface-mounted, Flush-mounted installation
Area of application Inside

Downloads

Variants & Accessories

Manual trigger switch AS 500
Accessories

AS 500

Manual trigger switch for the manual release of electrically controlled hold-open devices

Product details
