Wireless extensions

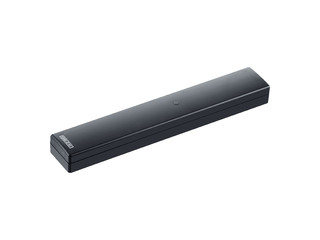

GC 171 Wireless module for wireless connection of wireless components to GEZE hold-open systems

GC 171 Wireless module Wireless module for wireless connection of wireless components to GEZE hold-open systems

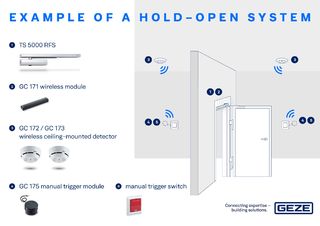

  • No cable connection needed between lintel-mounted detector and ceiling-mounted detector or manual trigger switch
  • Simple coupling of the wireless components
  • Connection of up to six wireless devices
  • Mixed installation (wireless/wired) possible
  • Low servicing costs due to long battery life of five years
Contact us

Wireless module for wireless connection of wireless components to GEZE hold-open systems

Application Areas

  • Installation in listed buildings without structural changes (cable routing)
  • Retro-fitting or extension of existing systems

Technical data

GC 171
Dimensions 177 x 30 x 18 mm
Ambient temperature -5 °C - 50 °C
Connection of additional smoke switches 6
Visual status display Yes
Supply voltage 24 V DC
IP rating IP20
Material Plastic
Type of installation Wall installation, Lintel
Line-feed Bottom, At the side
Area of application Inside
