RWA K 600

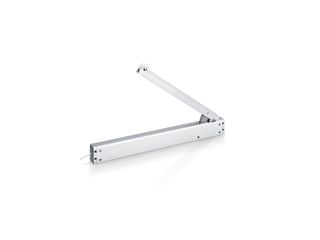

RWA K 600 T Retractable arm drive for air intake systems for installation at doors

  • 90° door opening in less than 60 seconds
  • Powerful drive with high torque
  • Connection cable simple to replace by means of plug
  • Integrated status contact for the electric strike control or feedback
  • The door remains freely passable thanks to the activation of the lever by means of a pressure roll fitted from the top
Contact us

Retractable arm drive for air intake systems for installation at doors

Application Areas

  • Use in the fresh air system where large opening angles are required
  • Single and double leaf RWA fresh air doors
  • Installation on the hinge or opposite hinge side

Product specifications

RWA K 600 T
Depth 40 mm
Current consumption 1.4 A
Length of power supply cable 5 m
Cable dimensions 0.5 mm²
Temperature range -5 °C 75 °C
IP rating / protection rating III
End position cut-off extended Internal path sensor
End position cut-off retracted Internal path sensor
Overload cut-off Yes
