Guide rail 1-leaf

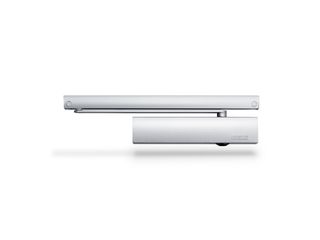

TS 5000 ECline Overhead door closer with guide rail for barrier-free single leaf doors of up to 1250 leaf width with opening assistance

  • Closing force with variable adjustment EN3-5
  • Access for all in accordance with DIN 18040 up to EN5 (1250 mm leaf width)
  • Can be used for right and left hand doors without conversion
  • Opening assistance for easy opening and comfortable passage of the door
  • Opening assistance can be switched off for doors with wind load or pressure differences
  • Hydraulic latching action which accelerates the door shortly before the closed position
Show more
  • Closing speed can be individually adjusted
  • Integrated back check, slows down doors that are thrown open forcefully
  • Visual closing force display for easy control of the setting
  • All functions can be set from the front and installation is just as easy as with standard systems
Contact us

Overhead door closer with guide rail for barrier-free single leaf doors of up to 1250 leaf width with opening assistance

Application Areas

  • Fire and smoke protection doors
  • Right and left single-action doors
  • Single-action doors up to 1250 mm leaf width

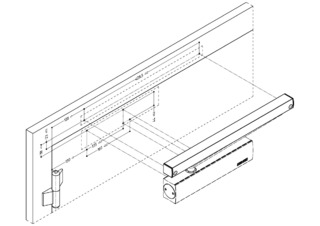

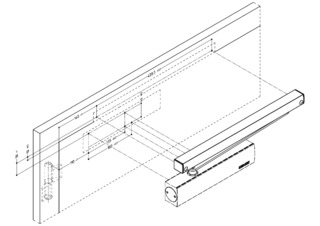

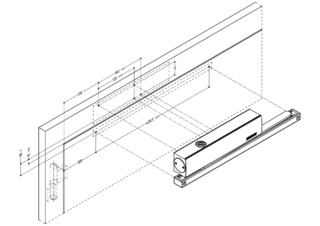

  • Door leaf installation hinge side and transom installation opposite hinge side
  • Access for all in accordance with DIN 18040 up to EN5

Product specifications

TS 5000 ECline
Suitability for fire protection doors Yes
