GEZE Powerturn IS/TS

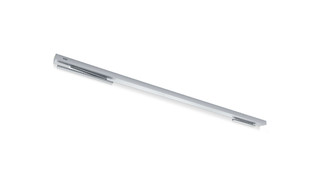

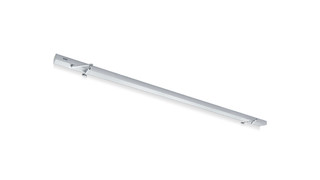

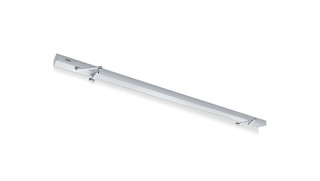

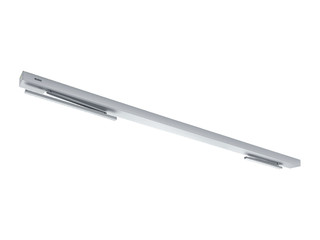

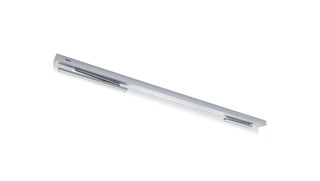

Powerturn IS/TS Semi-automatic system with swing door drive on active leaf and door closer on passive leaf

  • Smart swing function for easy manual door opening
  • Adjustable closing force of EN3-7 with variable adjustment
  • Opening and closing speed can be adapted individually on the active leaf
  • Mechanical latching action which accelerates the door shortly before the closed position
  • Mechanical closing sequence control holds the active leaf in the waiting position until the passive leaf is closed
  • Low-energy function opens the door with reduced speed, fulfilling the highest safety requirements
Show more
  • Obstacle detection detects objects through contact and stops the opening or closing process
  • Automatic reversing detects an obstacle and returns to the opening or closing position
  • Push & Go function triggers the automatic drive components following manual door handle activation
  • System available for use with roller guide rail or link arm
  • Optional radio board for wireless activation by radio transmitter
Contact us

Semi-automatic system with swing door drive on active leaf and door closer on passive leaf

Application Areas

  • Double leaf right and left single-action doors
  • Single-action doors with hinge clearance up to 3200 mm with link arm installation
  • Single-action doors with hinge clearance up to 3000 mm with roller guide rail installation
  • Minimum hinge clearance 1270 mm, minimum passive leaf width 470 mm (depending on installation type)
  • Interior and exterior doors with high access frequency
  • Symmetrical and asymmetrical door division possible
  • Transom installation hinge and opposite hinge side

Product specifications

Powerturn IS/TS
Height 70 mm
Depth 130 mm
Leaf weight (max.) 1-leaf 600 kg
