Levolan 60 with glass side panel

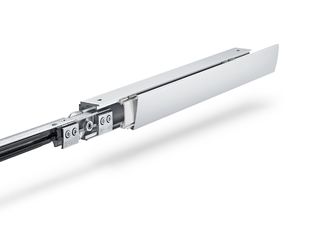

Levolan 60 complete set Levolan sliding door fitting for leaf weights up to 60 kg

Levolan 60 A sophisticated solution for the easy functional design and effortless movement of manual sliding door in internal applications
  • Design sliding door fitting for glass and timber leaves
Contact us

Levolan 60 complete set

Application Areas

  • For leaf weights up to 60 kg
  • For glass elements toughened safety glass 8, 10 and 12 mm as well as laminated safety glass up to 10 mm (with additional LSG kit) and timber leaves up to a weight of 60 kg
  • For wall and ceiling installation
  • Suitable for interior use

Installation situations in reference objects and videos

Installation video The Levolan 120 sliding door by GEZE: more power – with ease

The fitting technology of the Levolan 120 sliding door system is completely integrated in the only 50 millimetre high track. It moves manual sliding doors for internal application with leaf weights up to 120 kg.

Technical data

Levolan 60 complete set
Leaf material Glass, Plastic, Metal, Wood
Leaf weight (max.) 60 kg
Leaf weight (max.) with draw-in damper 60 kg
Number of leaves 1-leaf, 2-leaf
Leaf width (min.) 400 mm
Leaf width (max.) 1240 mm
Test cycles 100000
Corrosion protection class 3
Pane thickness 8 - 12 mm
Type of installation Wall, Ceiling
Side panel Yes

Downloads

Variants & Accessories

Floor guide for wooden leaf standard
Accessories

Floor guide for wooden leaf

Floor guide for wooden leaves mounted on the floor

Product details
Spacer profile for wall clearance Levolan 60 / 120
Accessories

Spacer profile for wall clearance Levolan 60 / 120

Spacer profile for wall installation of Levolan 60/120

Product details
Clamping profile Levolan
Accessories

Clamping profile for attaching wooden / metal leaves

Clamping profile for connecting timber leaves and Levolan 60/120 roller carriage

Product details
